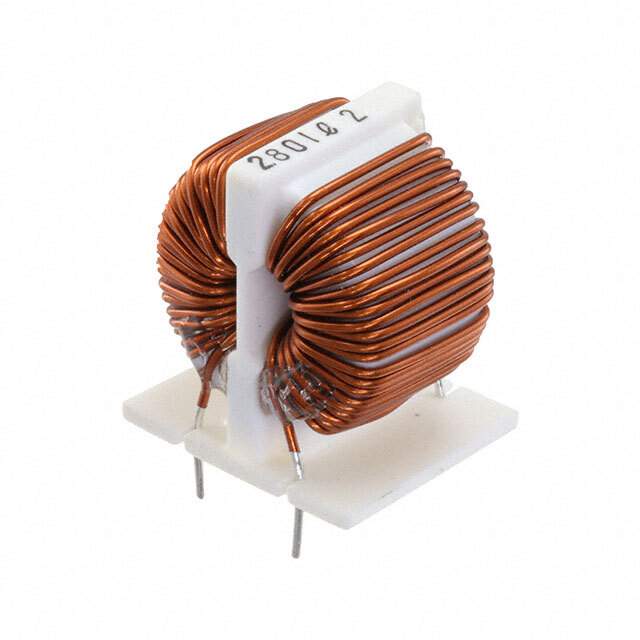

SC-11-16J Real Image
Same model may have multiple batches, images only for reference.

SC-11-16J

Part No SC-11-16J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.6 mH @ 10 kHz
Current Rating (Max) 11A
DC Resistance (DCR) (Max) 13mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.378" L x 0.906" W (35.00mm x 23.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-11
Other Names 399-SC-11-16J,UALSC1116J0000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277002-SC-11-16J
Ultra Librarian 3D Model Ultra Librarian SC-11-16J CAD Model

Description

The KEMET SC-11-16J is a common mode choke filter designed for power lines.

  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 11A
  • Height: 1.299 inches (33.00mm)
  • Mounting Type: Through-hole
  • Inductance: 1.6mH @ 10kHz
  • Package: Tray
  • Standard Package: 200
  • Temperature Range: 25°C to 120°C
  • ECCN: EAR99
