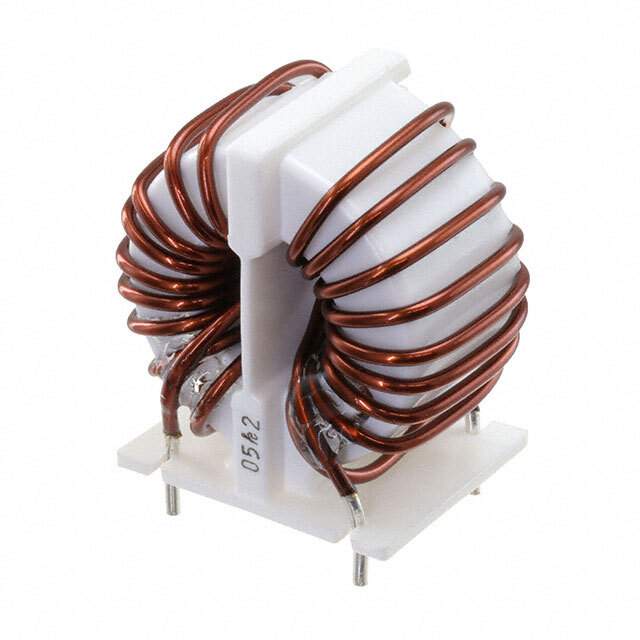

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 350 µH @ 10 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 8mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.630" W (25.00mm x 16.00mm)
Height (Max) 0.945" (24.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-10
Other Names 399-SC-10-E035J,UALSC10E035J00
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276968-SC-10-E035J
Ultra Librarian 3D Model Ultra Librarian SC-10-E035J CAD Model

Description

The KEMET SC-10-E035J is a common mode choke that offers excellent performance and reliability.

  • Features: High level of inductance and a low level of DC resistance
  • Maximum Current: 10 A
  • Voltage: 250 V AC/DC
  • Application: Power line filters
  • Packaging: Tray
  • Standard Package: 150 units
