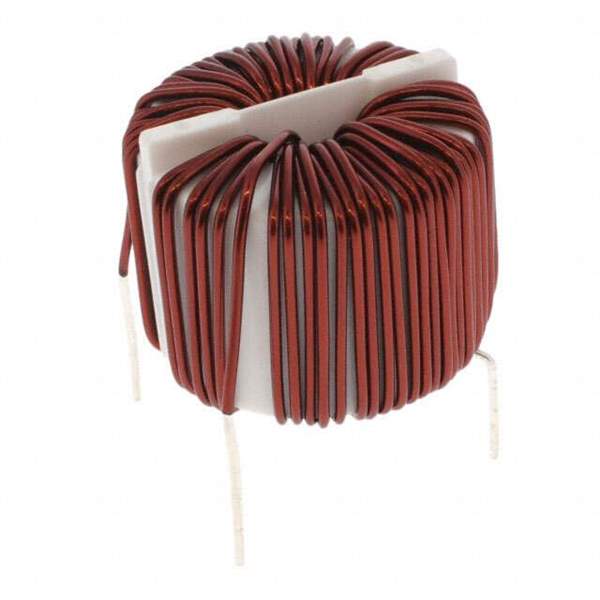

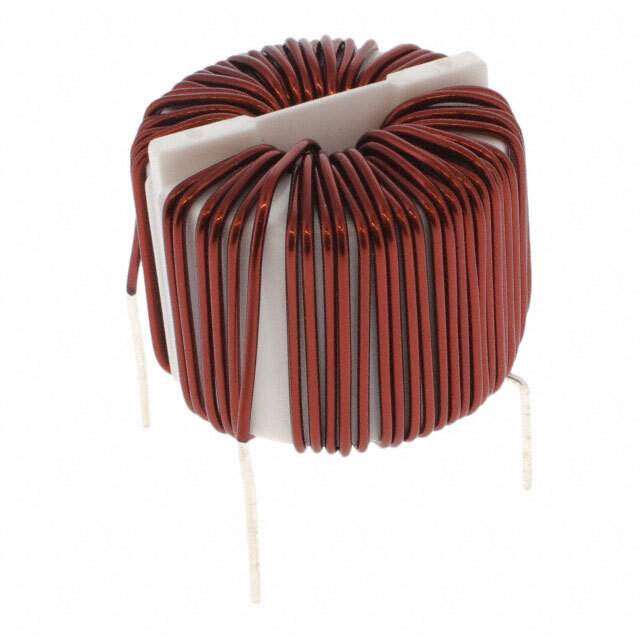

SC-09-1400 Real Image
Same model may have multiple batches, images only for reference.

SC-09-1400

Part No SC-09-1400
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 14 mH @ 1 kHz
Current Rating (Max) 9A
DC Resistance (DCR) (Max) 53mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.929" Dia (49.00mm)
Height (Max) 1.575" (40.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-09
Other Names UALSC091400000,399-SC-09-1400
Standard Package 40
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277074-SC-09-1400
Ultra Librarian 3D Model Ultra Librarian SC-09-1400 CAD Model

Description

The KEMET 1277074-SC-09-1400 is a power line filter that belongs to the SC series.

  • Maximum Current Rating: 9A
  • Voltage Rating: 250V AC and DC
  • Package: Bulk
  • Package/Case: Horizontal, no base, 4 PC pin
  • Operating Temperature Range: From -25°C to 105°C
  • Manufacturer: KEMET
  • Win Source Part Number: 1277074-SC-09-1400
