Same model may have multiple batches, images only for reference.

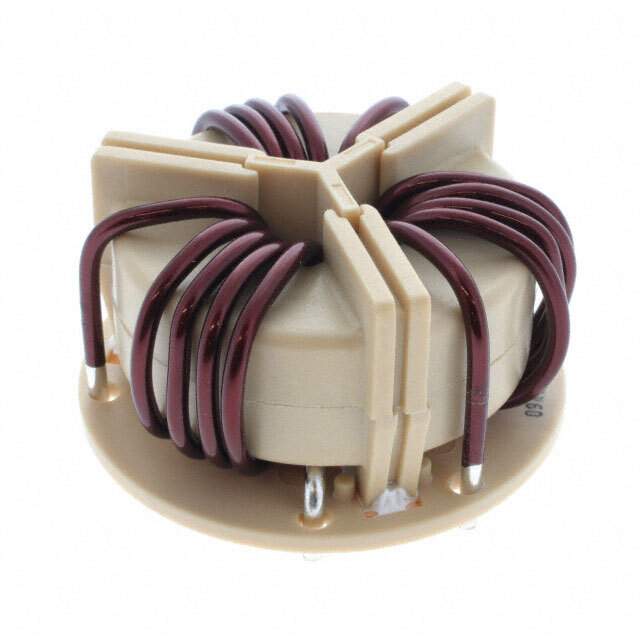

SC-07-S045JH Real Image
Same model may have multiple batches, images only for reference.

SC-07-S045JH

Part No SC-07-S045JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 441 µH @ 10 kHz
Current Rating (Max) 7A
DC Resistance (DCR) (Max) 13mOhm
Voltage Rating - DC 500V
Voltage Rating - AC 500V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.654" Dia (42.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Horizontal, 6 PC Pin
Base Product Number SC-07
Other Names UALSC07S045JH0,399-SC-07-S045JH
Standard Package 80
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276927-SC-07-S045JH
Ultra Librarian 3D Model Ultra Librarian SC-07-S045JH CAD Model

Description

The KEMET 1276927-SC-07-S045JH common mode choke is designed to filter out power line noise.

  • Voltage Rating: 500V AC and DC
  • Current Rating: 7A
  • Series: SC series
  • Packaging: Tray
  • Height: 1.063" (27.00mm)
  • Lines: 3
  • Inductance: 441 µH @ 10 kHz
  • DC Resistance: 13mOhm
  • Mounting: Through-hole
  • Package/Case: Horizontal, 6 PC pin
  • Operating Temperature Range: 25°C to 120°C
  • Failure Rate: -
