SC-05-500 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

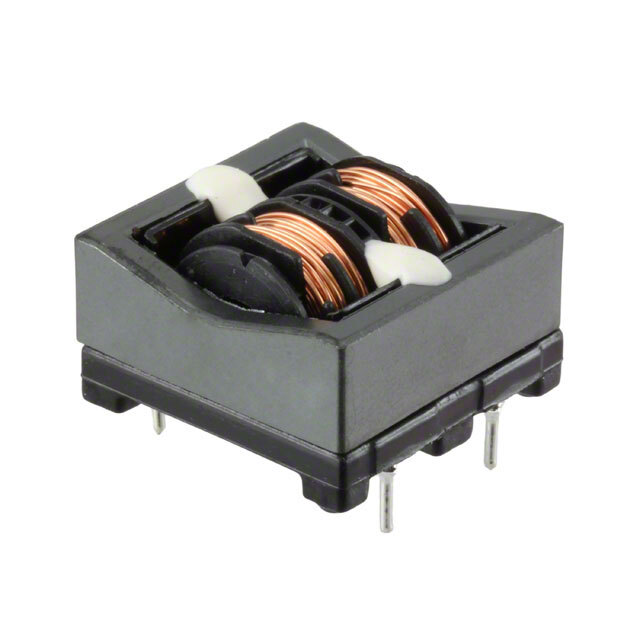

SC-05-500

Part No SC-05-500
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 5MH 4A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5 mH @ 100 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 80mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Size / Dimension 1.339" Dia x 0.906" W (34.00mm x 23.00mm)
Height (Max) 1.339" (34.00mm)
Case / Package Vertical, No Base, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530662-SC-05-500
Ultra Librarian 3D Model Ultra Librarian SC-05-500 CAD Model
