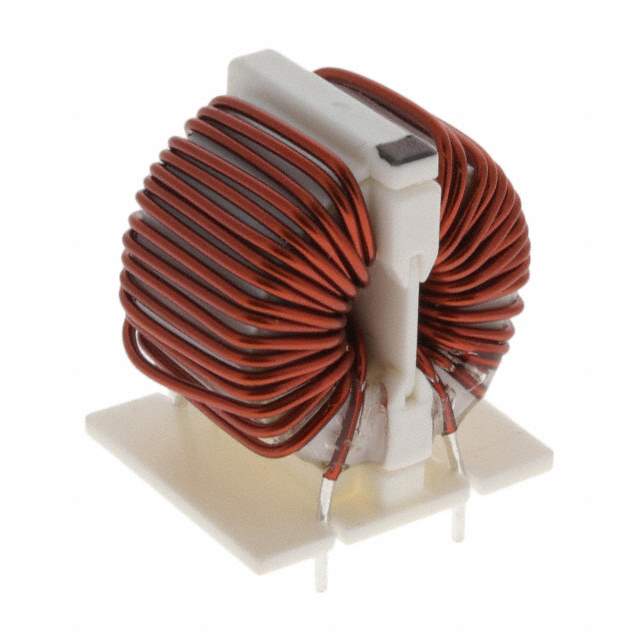

SC-05-15J

Part No SC-05-15J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5 mH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 40mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-05
Other Names UALSC0515J0000,399-SC-05-15J
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277005-SC-05-15J
Ultra Librarian 3D Model Ultra Librarian SC-05-15J CAD Model

Description

The KEMET SC-05-15J is a common mode choke filter designed for power line filtering applications.

  • Voltage Rating: 250V AC and 250V DC
  • Maximum Current Rating: 5A
  • Height: 27.00mm
  • Package: Tray
  • Lines: Two
  • Inductance: 1.5 mH @ 100 kHz
  • DC Resistance (DCR): 40mOhm
  • Operating Temperature Range: 25°C to 120°C
  • Length: 0.984"
  • Width: 0.787"
  • ECCN: EAR99
  • REACH: Unaffected
