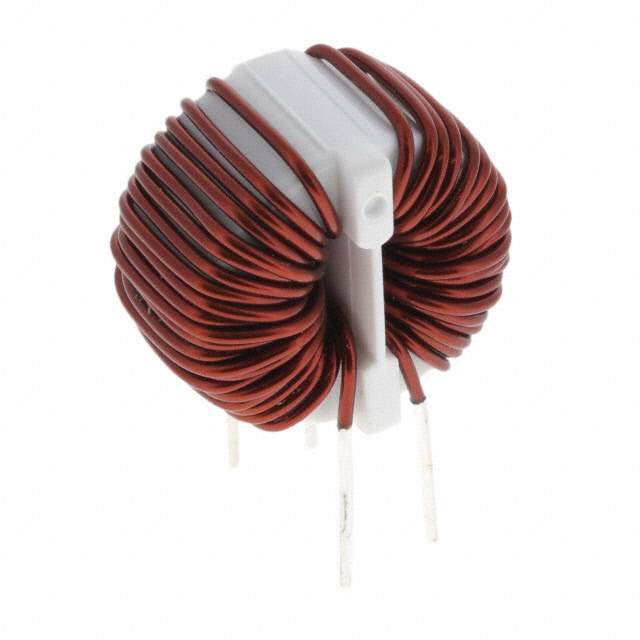

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 20.3 mH @ 10 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 150mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" Dia (34.00mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-04
Other Names 399-SC-04-E2000,UALSC04E200000
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277056-SC-04-E2000
Ultra Librarian 3D Model Ultra Librarian SC-04-E2000 CAD Model

Description

The Kemet 1277056-SC-04-E2000 is a common mode choke filter with a voltage rating of 250VAC and 250VDC.

  • Voltage Rating: 250VAC
  • Voltage Rating: 250VDC
  • Current Rating (Max): 4A
  • Inductance @ Frequency: 20.3 mH @ 10 kHz
  • DC Resistance (DCR) (Max): 150mOhm
  • Mounting Type: Through hole
  • Temperature Range: -25°C ~ 120°C
