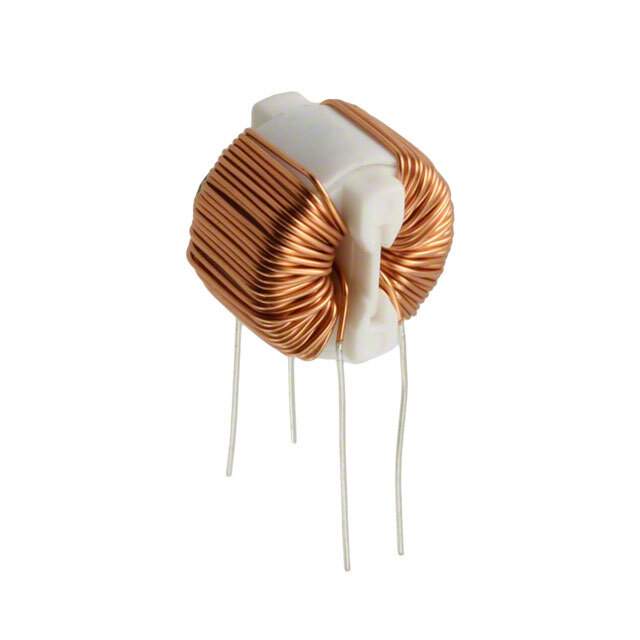

SC-01-50G Real Image
Same model may have multiple batches, images only for reference.

SC-01-50G

Part No SC-01-50G
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5 mH @ 100 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 150mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-01
Other Names 399-10632,UALSC0150G0000
Standard Package 1,300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277042-SC-01-50G
Ultra Librarian 3D Model Ultra Librarian SC-01-50G CAD Model

Description

The SC-01-50G is a common mode choke from KEMET's SC series. It is an EAR99 component and is REACH unaffected.

  • Filter Type: Power Line
  • Maximum Current Rating: 1A
  • Voltage Rating: 250V AC/DC
  • Mounting Type: Through-hole
  • Package: Vertical, no base, 4 PC pin
  • Height: 17.50mm
  • Dimension: 17.50mm x 14.00mm
  • Temperature Range: -25°C to 105°C
  • Inductance: 5 mH @ 100 kHz
