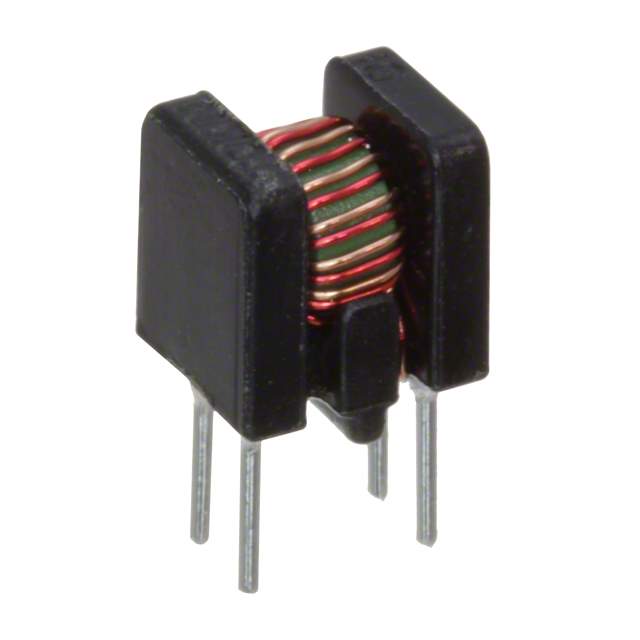

SBT-0115W Real Image
Same model may have multiple batches, images only for reference.

SBT-0115W

Part No SBT-0115W
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 5UH 500MA 2LN TH / 5 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 30mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SBT-01W
Package Bulk
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 5 µH @ 1 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 30mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 70°C
Mounting Type Through Hole
Height (Max) 0.354" (9.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SBT-011
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names UDLSBTW0115W00,399-19648
Standard Package 1,000
Win Source Part Number 1049759-SBT-0115W
Ultra Librarian 3D Model Ultra Librarian SBT-0115W CAD Model

Description

The KEMET SBT-01W series common mode choke is a signal line filter designed for use in electronic circuits.

  • Maximum DC Resistance: 30mOhm
  • Current Rating: 500mA
  • Mounting: through-hole
  • Inductance: 5µH @ 1 kHz
  • Operating Temperature Range: -25°C to 70°C
  • Package: vertical, 4 PC pin
  • Packaging: bulk
  • Standard Package: 1,000
