Product Overview: DSC1122CI2-125.0000

Manufacturer: Microchip Technology

Category: Clock/Timing - Programmable Oscillators

The DSC1122CI2-125.0000 is a high-performance, precision MEMS oscillator from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This device offers a stable and reliable frequency source, suitable for a wide range of applications in modern electronics. The oscillator operates at a fixed frequency of 125.0000 MHz, providing a precise clock signal for timing-sensitive applications.

Constructed using Microchip's advanced MEMS technology, the DSC1122 series offers excellent temperature stability and jitter performance, rivaling traditional quartz crystal oscillators while providing enhanced reliability and resilience to environmental factors such as shock and vibration. This makes it an ideal choice for industrial, automotive, and telecommunications applications, among others.

Key Features:

• Frequency: 125.0000 MHz
• Supply Voltage: 2.25V to 3.63V
• Output Type: CMOS
• Package / Case: 6-SMD, No Lead
• Size / Dimension: 2.50mm x 2.00mm
• Temperature Stability: ±25ppm
• Operating Temperature: -40°C to +85°C
• Function: Standby (Power Down)
• Current - Supply (Max): 8mA
• Mounting Type: Surface Mount

With its integrated phase-locked loop (PLL) circuitry, the DSC1122CI2-125.0000 can generate a high-frequency clock signal from a lower frequency reference signal, providing flexibility in system design. The product also features a standby function that allows the oscillator to be placed in a power-down state, reducing power consumption when the clock signal is not required.

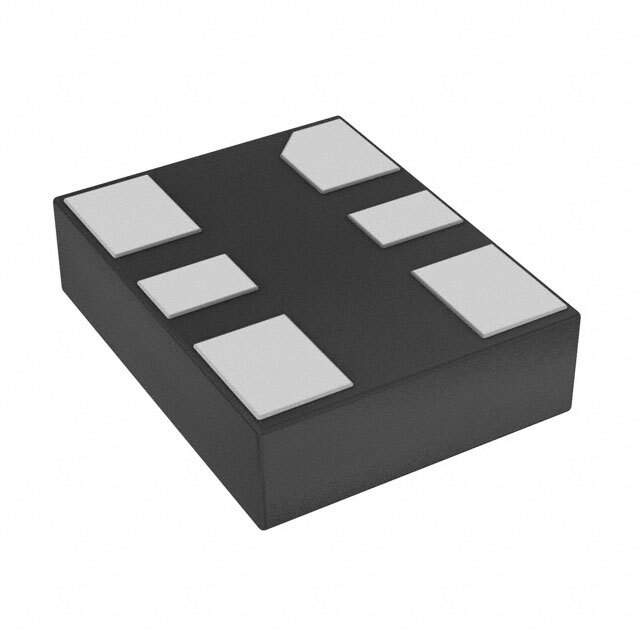

The device is packaged in a compact 6-SMD, no-lead package, which minimizes the footprint on the printed circuit board (PCB) and is suitable for high-density mounting. This, combined with its wide operating temperature range, ensures that the DSC1122CI2-125.0000 can be used in a variety of challenging environments without compromising performance.

Whether you are designing a complex telecommunications system, an automotive electronics module, or a high-performance industrial control system, the DSC1122CI2-125.0000 from Microchip Technology offers a reliable and high-quality clock solution to meet your needs.
