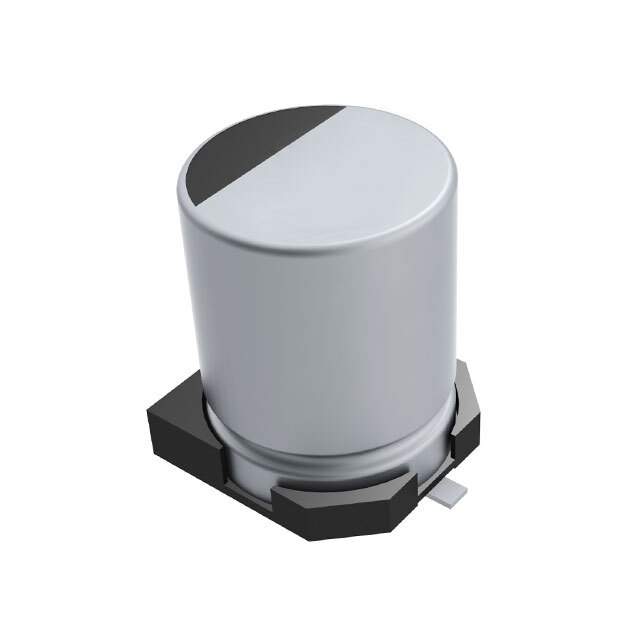

EDK106M050A9GAA Real Image
Same model may have multiple batches, images only for reference.

EDK106M050A9GAA

Part No EDK106M050A9GAA
Manufacturer Kemet
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 50V SMD / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr KEMET
Series EDK
Package Tape & Reel
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 35 mA @ 120 Hz
Ripple Current @ High Frequency 43.75 mA @ 10 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.222" (5.64mm)
Surface Mount Land Size 0.260" L x 0.307" W (6.60mm x 7.80mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EDK106M
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 399-6667-2,399-6667-6,DK106M050A9GAAKPLP,399-6667-1
Standard Package 1,000
Win Source Part Number 1182520-EDK106M050A9GAA
Ultra Librarian 3D Model Ultra Librarian EDK106M050A9GAA CAD Model

Description

The KEMET EDK series capacitor is an aluminum electrolytic capacitor designed for general-purpose applications.

  • Series: EDK
  • Capacitance: 10μF
  • Tolerance: ±20%
  • Voltage Rating: 50V
  • Package: Tape & Reel
  • Mounting: SMD (SMT)
  • Height: 0.222" (5.64mm)
  • Surface Mount Land Size: 0.260" L x 0.307" W (6.60mm x 7.80mm)
  • Package/Case: Radial, Can - SMD
  • Lifetime @ Temperature: 2000 Hrs @ 85°C
  • Polarization: Polar
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.248" Dia (6.30mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8532.22.0020
  • Base Product Number: EDK106M
  • Ripple Current @ Low Frequency: 35 mA @ 120 Hz
  • Ripple Current @ High Frequency: 43.75 mA @ 10 kHz
