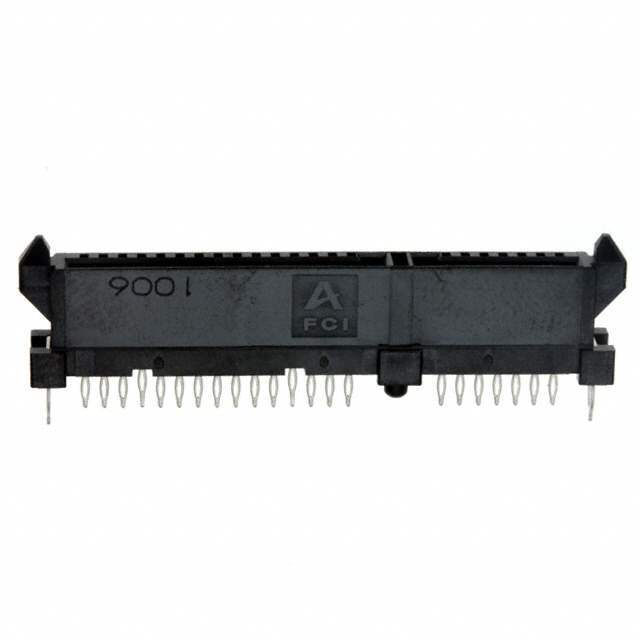

10022676-001LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10022676-001LF

Part No 10022676-001LF
Manufacturer Amphenol
Catalog Pluggable Connectors
Description CONN SATA RCPT 22P PRESSFIT PCB
Datasheet
10022676-001LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310662-10022676-001LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Pluggable Connectors > Pluggable Connector Assemblies
Packaging Tray
Part Status Last Time Buy
Connector Type SATA
Number of Positions 22
Mounting Type Through Hole
Termination Press-Fit
Features Board Guide, Board Lock
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ultra Librarian 3D Model Ultra Librarian 10022676-001LF CAD Model

Description

● Extends differential signaling from 1.5Gb/s to 12Gb/s

● Staggered contact lengths for hot plugging applications

● Contact range from 7 to 22 positions

● Various plating options available
