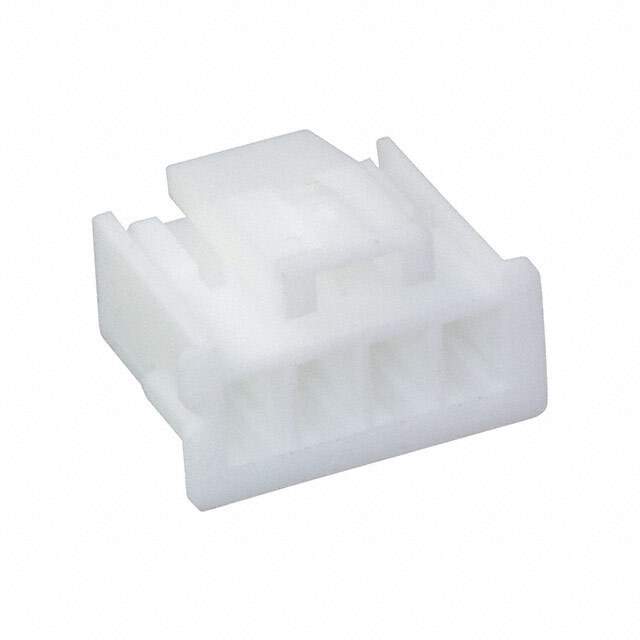

XARP-04V Real Image
Same model may have multiple batches, images only for reference.

XARP-04V

Part No XARP-04V
Manufacturer JST Sales America Inc.
Catalog Custom Parts (U - Z)
Description Connector Housing, XA Series, 4 position, 2.5mm, 250V, 28-20 AWG, Retainer Mountable, Natural
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Depth 9.5 mm
Gender Female
Housing Color White
Housing Material Polyamide
Lead Free Lead Free
Length 12.3 mm
Max Current Rating 3 A
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature -25 °C
Number of Positions 4
Number of Rows 1
Orientation Straight
Pitch 2.5 mm
RoHS Compliant
Termination Crimp
Wire/Cable Gauge 20 AWG
Win Source Part Number 1220076-XARP-04V
Categories Custom Parts
Manufacturer JST Sales America Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XARP-04V CAD Model

Description

The XARP-04V connector from JST Sales America Inc. is a female connector that has four positions.

  • Positions: 4
  • Pitch: 2.5 mm
  • Color: White
  • Termination: Crimp
  • Gender: Female
  • Length: 12.3 mm
  • Housing Material: Polyamide
  • Orientation: Straight
  • Housing Color: White
  • Alternative Parts: XARP04V
  • Depth: 9.5 mm
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -25 degrees Celsius
  • Maximum Voltage Rating (AC): 250 V
  • Wire/Cable Gauge: 20 AWG
  • Maximum Current Rating: 3 A
  • Maximum Operating Temperature: 85 degrees Celsius
