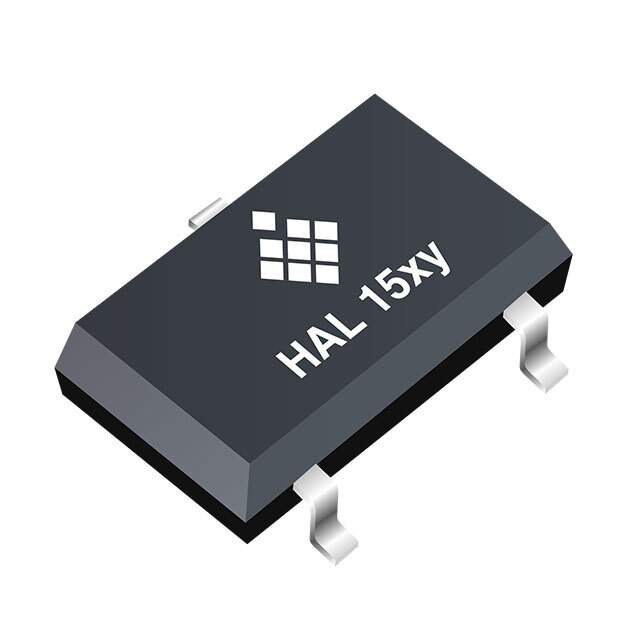

The HAL1507SU-A-4-R-6-39-HASX-03 is a programmable linear Hall effect sensor manufactured by Micronas GmbH. This sensor is designed for precise measurement of magnetic fields, providing a linear output voltage proportional to the applied field strength.

Applications

• Linear position sensing
• Current sensing
• Angle measurement
• Rotary position sensing
• Proximity detection

Features

• Programmable sensitivity and offset
• High accuracy and linearity
• Temperature compensation
• Short circuit and overvoltage protection
• Analog output
• Small package size

Benefits

• Flexibility to adapt to various magnetic field ranges due to programmable sensitivity
• Precise and reliable measurements due to high accuracy and linearity
• Stable performance over temperature variations due to temperature compensation
• Protection against electrical stress
• Easy integration into analog circuits
• Compact design allows for use in space-constrained applications

Additional Details

The HAL1507SU-A-4-R-6-39-HASX-03 linear Hall sensor is designed with advanced BiCMOS technology, providing high sensitivity and accuracy. The sensor's programmability allows for customization of the output characteristics to match specific application requirements. Temperature compensation ensures stable operation over a wide temperature range. The integrated protection features enhance the reliability and robustness of the sensor. The analog output signal is proportional to the magnetic field strength, allowing for direct interface with analog signal processing circuits. Detailed specifications, including sensitivity range, offset voltage, and temperature coefficients, can be found in the Micronas datasheet. This sensor is well-suited for applications requiring precise and reliable measurement of magnetic fields in industrial and automotive environments.
