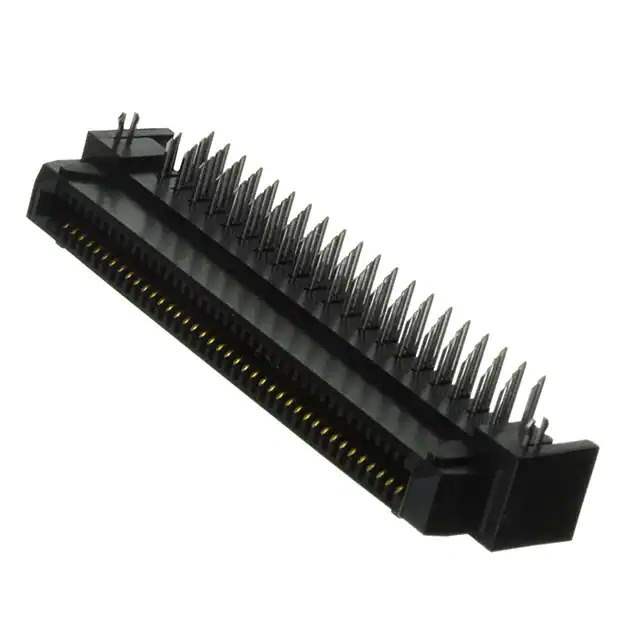

Same model may have multiple batches, images only for reference.

TX24-80R-LT-H1E

Name: TX24-80R-LT-H1E
Brand: JAE Electronics
SKU: 901581
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TX24-80R-LT-H1E
Manufacturer	JAE Electronics
Catalog	Rectangular Connectors
Description	CONN RCPT 80POS R/A GOLD
Datasheet	TX24-80R-LT-H1E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	JAE Electronics
Series	TX24
Package	Tray
Product Status	Active
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	80
Pitch	0.050" (1.27mm)
Number of Rows	2
Mounting Type	Through Hole, Right Angle
Features	Board Lock
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Height Above Board	0.354" (9.00mm)
Base Product Number	TX24-80R
Standard Package	396 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	901581-TX24-80R-LT-H1E
Ultra Librarian 3D Model	Ultra Librarian TX24-80R-LT-H1E CAD Model

Description

The TX24-80R-LT-H1E is a rectangular connector array designed for board-to-board interconnections and belongs to the TX24 series from JAE Electronics.

Number of Positions: 80
Pitch: 0.050" (1.27mm)
Type: Receptacle with Outer Shroud Contacts
Board Lock: Yes
Number of Rows: 2
Contact Finish: Gold Plating
Mounting Type: Through-Hole, Right Angle
Height Above Board: 0.354" (9.00mm)
Package: Trays
Pieces per Package: 396
Product Status: Active
California Prop 65: Compliant
