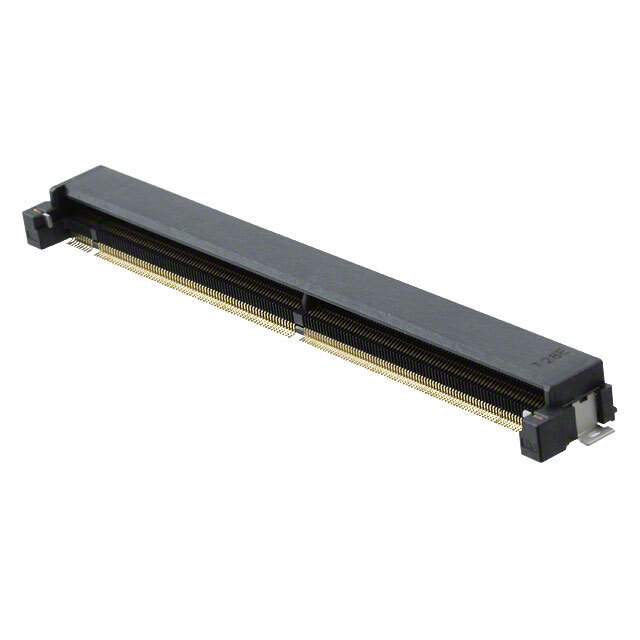

MM70-314-310B1-1-R300

Part No MM70-314-310B1-1-R300
Manufacturer JAE Electronics
Catalog Card Edge Connectors - Edgeboard Connectors
Datasheet
MM70-314-310B1-1-R300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr JAE Electronics
Series MM70
Package Tape & Reel (TR),Cut Tape (CT)
Card Type MXM 3.0
Gender Female
Number of Positions 314
Card Thickness 0.047" (1.20mm)
Number of Rows 2
Pitch 0.020" (0.50mm)
Read Out Dual
Features Board Guide, Latches
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 3.94µin (0.10µm)
Color Black
Temperature Range - Operating -40°C ~ 85°C
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number MM70-314
Other Names 670-2431-2,MM70314310B11R300,670-2431-1,670-2431-6,670-2431-6INACTIVE,-MM70-314-310B1-1-R300,670-2431-6
Standard Package 300
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294248-MM70-314-310B1-1-R300
Ultra Librarian 3D Model Ultra Librarian MM70-314-310B1-1-R300 CAD Model

Description

The MM70 series card edge connector from JAE Electronics is a high-quality connector that is designed to deliver reliable performance in a range of applications.

  • Positions: 314
  • Pitch: 0.020 inches
  • Color: Black
  • Features: Latches
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.94μin (0.10μm)
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Gender: Female
  • For Use With/Related Products: MXM 3.0 Cards
  • Card Thickness: 0.047 inches
  • Mounting Type: Surface Mount, Right Angle
  • Operating Temperature: -40°C to 85°C
