Analog Devices Inc. introduces the ADV7611BSWZ-P, a high-performance, low-power HDMI receiver that integrates a multitude of features to deliver superior video and audio quality. This integrated circuit is designed to simplify the design and implementation of high-definition multimedia interfaces in a variety of applications, making it an ideal solution for designers looking to incorporate HDMI connectivity into their products.

Key Features

• High-Definition Multimedia Interface: The ADV7611BSWZ-P supports HDMI 1.4 features, enabling it to handle high-definition video formats, including 3D video, and an extended colorimetry range.
• Audio Support: This device is capable of extracting and processing high-quality audio streams, including Dolby TrueHD and DTS-HD Master Audio, providing an immersive sound experience.
• Integrated Equalizer: The built-in equalizer ensures signal integrity even over long cable runs, making this receiver suitable for complex installations.
• Low Power Consumption: Designed with power efficiency in mind, the ADV7611BSWZ-P minimizes energy usage, which is critical for battery-powered or energy-sensitive applications.
• Advanced Color Spaces: It supports a wide range of color spaces, including sRGB, YCbCr, and xvYCC, allowing for vibrant and accurate color reproduction.
• EDID Management: The device can read and store Extended Display Identification Data (EDID), which facilitates automatic configuration of resolution and audio settings.

Applications

The ADV7611BSWZ-P is versatile and can be used in a variety of applications, including:

• Home Theater Systems
• Professional AV Systems
• Digital Signage
• Video Conferencing
• Automotive Infotainment
• Medical Imaging Equipment

Technical Specifications

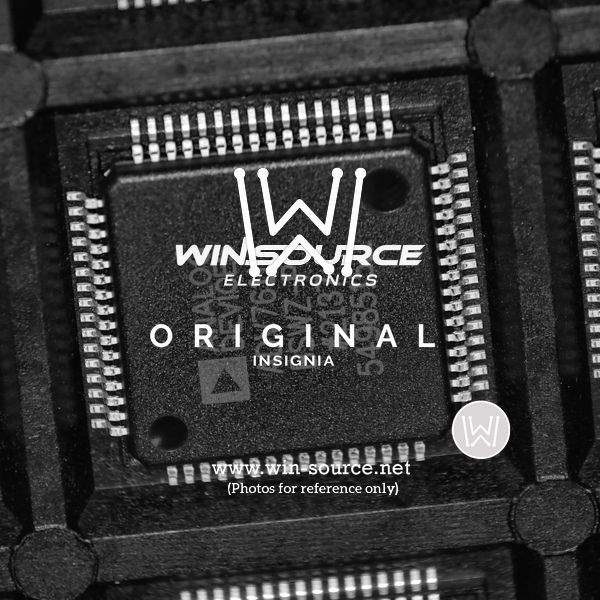

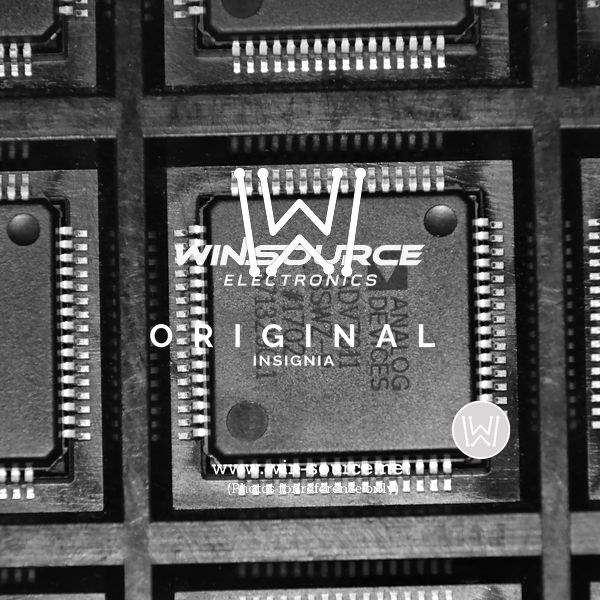

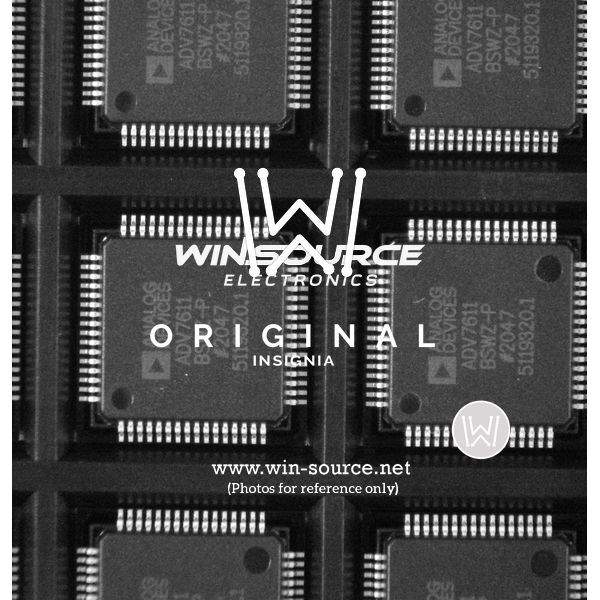

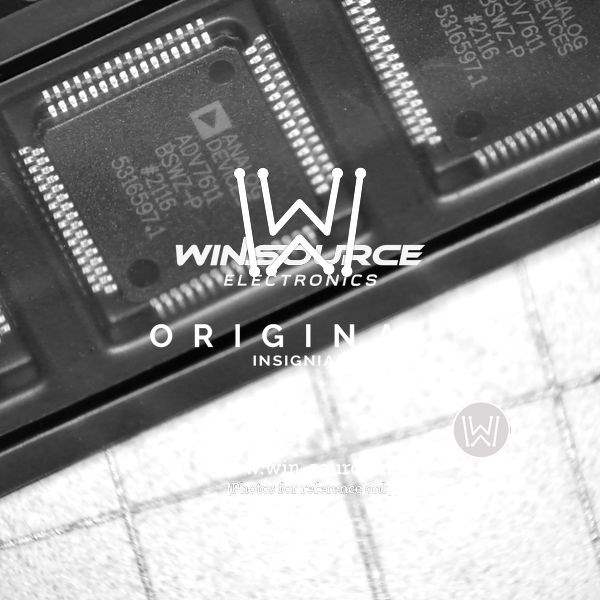

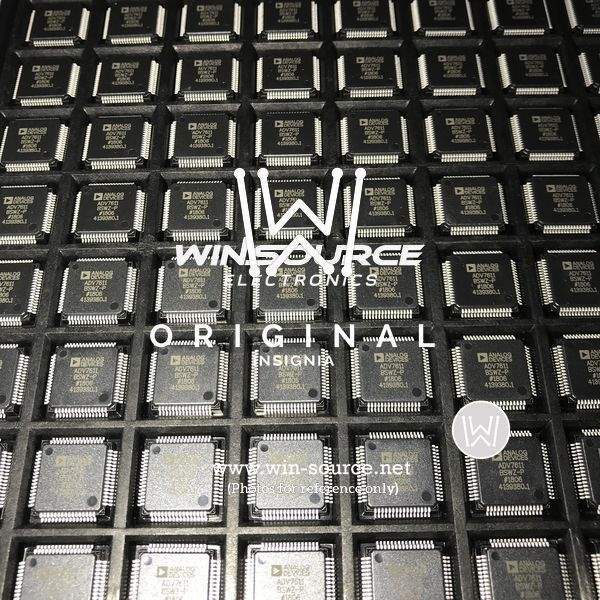

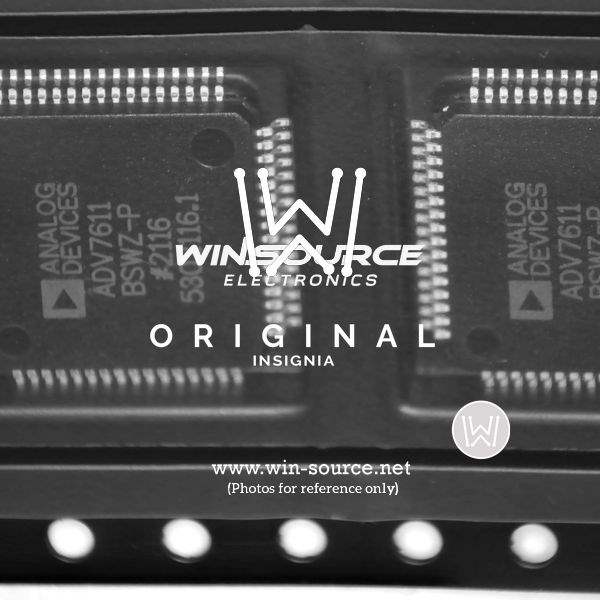

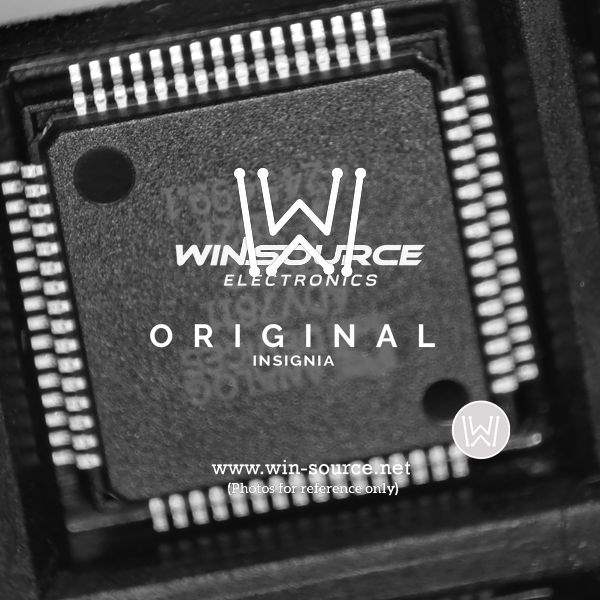

The ADV7611BSWZ-P is packaged in a compact 64-lead LQFP, making it suitable for space-constrained applications. It operates over a temperature range of -40°C to +85°C, ensuring reliability in varying environmental conditions. The device also features a single 1.8V power supply, which simplifies power management within the system design.

With its robust feature set and Analog Devices' reputation for quality, the ADV7611BSWZ-P stands out as a top-tier HDMI receiver solution for designers and manufacturers looking to enhance their multimedia products.
