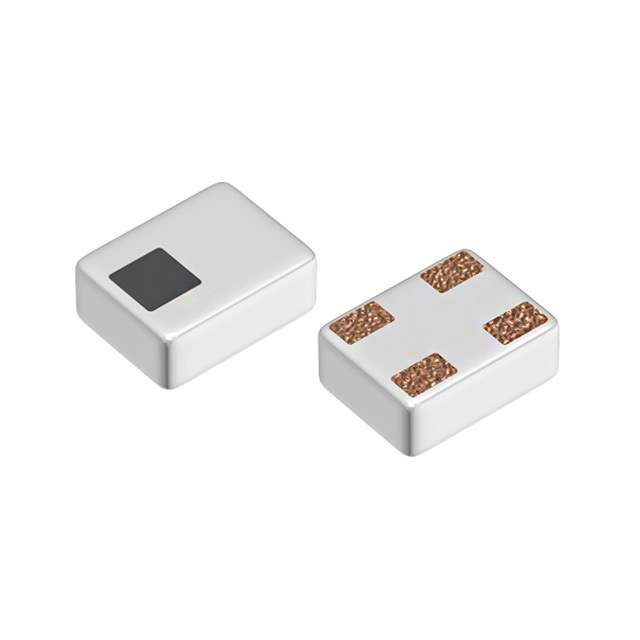

DEA075150HT-8036A1 Real Image
Same model may have multiple batches, images only for reference.

DEA075150HT-8036A1

Part No DEA075150HT-8036A1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER HIGH PASS 5GHZ 0202  /  5GHz Frequency High Pass RF Filter (Radio Frequency) Bandwidth 0.5dB 0202 (0505 Metric), 4 PC Pad
Datasheet
DEA075150HT-8036A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr TDK Corporation
Series DEA
Package Tape & Reel
Frequency 5GHz
Filter Type High Pass
Insertion Loss 0.5dB
Mounting SMD (SMT)
Package / Case 0202 (0505 Metric), 4 PC Pad
Dimension 0.026" L x 0.020" W (0.65mm x 0.50mm)
Height (Max) 0.012" (0.30mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 445-175384-2,445-175384-1,445-175384-6
Standard Package 10,000
Win Source Part Number 1026900-DEA075150HT-8036A1
Ultra Librarian 3D Model Ultra Librarian DEA075150HT-8036A1 CAD Model

Description

The TDK Corporation DEA075150HT-8036A1 is an electronic component with Win Source Part Number 1026900-DEA075150HT-8036A1.

  • Product Name: DEA075150HT-8036A1
  • Manufacturer: TDK Corporation
  • Win Source Part Number: 1026900-DEA075150HT-8036A1
  • Category: Filters>RF Filters
  • Series: DEA
  • Package Type: Tape & Reel
  • Standard Package: 10,000
  • Mounting Type: SMD (SMT)
  • Frequency: 5GHz
  • Insertion Loss: 0.5dB
  • Filter Type: High Pass
  • Height (Max): 0.012" (0.30mm)
  • Dimension: 0.026" L x 0.020" W (0.65mm x 0.50mm)
  • ECCN: EAR99
  • HTSUS: 8548.00.0000
