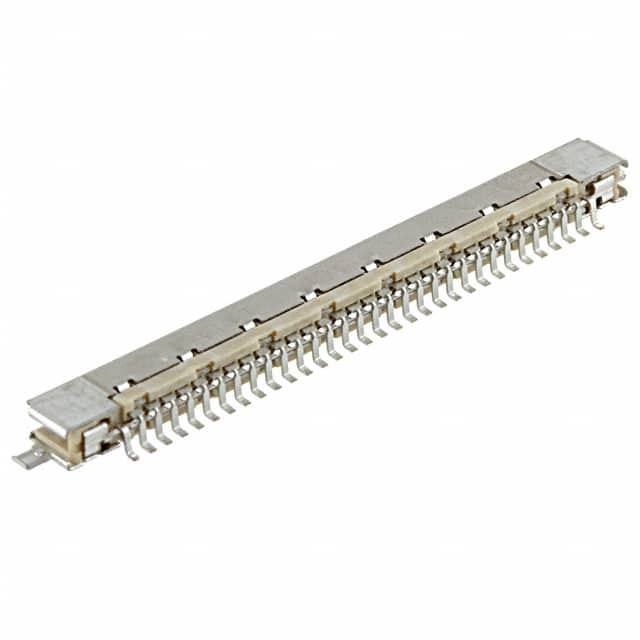

FI-X30SSLA-HF
Same model may have multiple batches, images only for reference.

FI-X30SSLA-HF

Part No FI-X30SSLA-HF
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 30P 0.039 GOLD SMD R/A / 30 Position Receptacle Connector 0.039" (1.00mm) Surface Mount, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr JAE Electronics
Series FI-X
Package Strip
Product Status Obsolete
Connector Type Receptacle
Contact Type Non-Gendered
Style Board to Cable/Wire
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.039" (1.00mm)
Number of Rows 1
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Finish - Mating Gold
Insulation Color Beige
Insulation Height 0.091" (2.30mm)
Temperature Range - Operating -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Grounding Pins, Shielded, Solder Retention
Current Rating (Amps) 1A per Contact
Voltage Rating 200V
Applications General Purpose
Insulation Material Plastic
Contact Material Copper Alloy
Base Product Number FI-X30
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 849054-FI-X30SSLA-HF
Ultra Librarian 3D Model Ultra Librarian FI-X30SSLA-HF CAD Model

Description

The FI-X30SSLA-HF is a female socket connector from the FI-X series by JAE Electronics.

  • Positions: 30
  • Features: Grounding Pins, Shielded Design, Solder Retention
  • Connector Type: Receptacle
  • Contact Type: Non-Gendered
  • Configuration: Single Row
  • Fastening Type: Friction Lock
  • Mounting Type: Surface Mountable, Right Angle
  • Contact Material: Copper Alloy
  • Voltage Rating: 200V
  • Applications: General Purpose
  • Operating Temperature: -40°C to 80°C
  • Product Status: Obsolete
