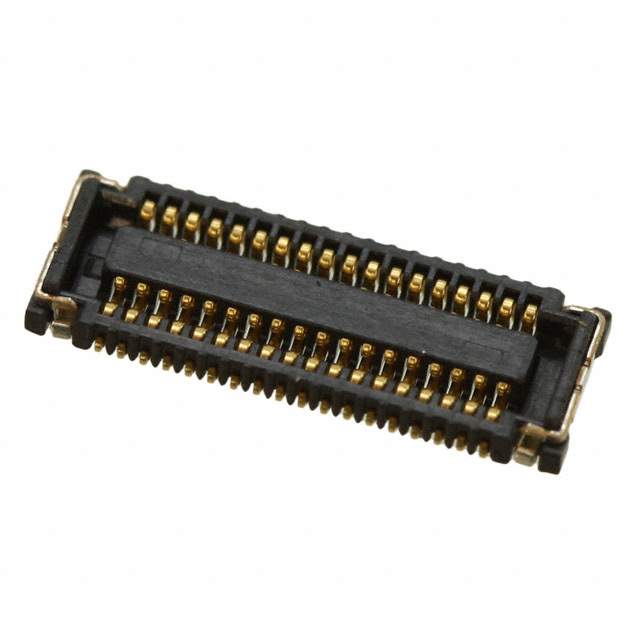

AA03-S036VA1-R6000

Part No AA03-S036VA1-R6000
Manufacturer JAE Electronics
Catalog Custom Parts (0 - A)
Description Conn Rcpt Vert 36POS 0.4MM Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package SMD/SMT
Current Rating 400 mA
Height 1 mm
Length 9.5 mm
Max Operating Temperature 85 °C
Min Operating Temperature -45 °C
Number of Poles 36
Pitch 400 µm
RoHS Compliant
Shape Straight
Width 3.4 mm
Win Source Part Number 1158420-AA03-S036VA1-R6000
Categories Custom Parts
Manufacturer JAE Electronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AA03-S036VA1-R6000 CAD Model

Description

The JAE Electronics 1158420-AA03-S036VA1-R6000 is a 36-pole straight SMD/SMT connector with a pitch of 400 µm, a current rating of 400 mA, a length of 9.5 mm, a height of 1 mm, and a width of 3.4 mm.

  • Pitch: 400 µm
  • Current Rating: 400 mA
  • Length: 9.5 mm
  • Height: 1 mm
  • Width: 3.4 mm
  • RoHS Compliant: Yes
  • Operating Temperature: -45 °C to 85 °C
  • Category: Custom Parts
  • Popularity: Medium
