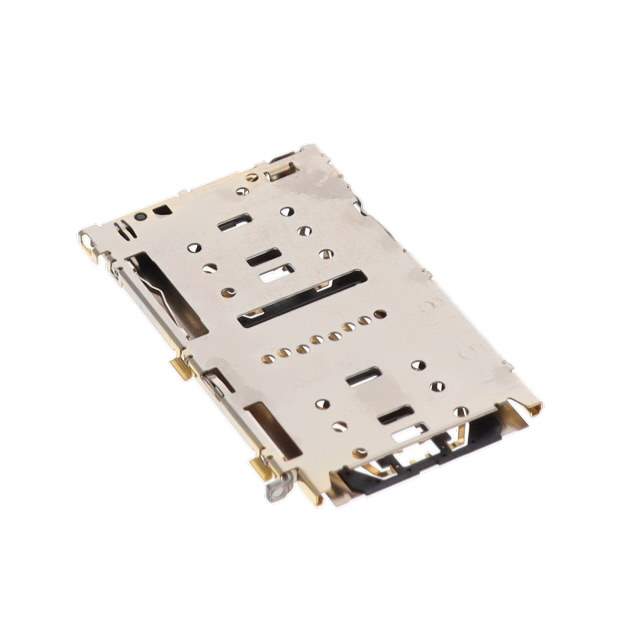

ST19S020VCAR1400 Real Image
Same model may have multiple batches, images only for reference.

ST19S020VCAR1400

Part No ST19S020VCAR1400
Manufacturer JAE Electronics
Catalog Memory Connectors - PC Card Sockets
Description COMBO MICRO SD/NANO SIM R/A SMD / 20 Position Card Connector Combo - microSD™, NANO SIM Surface Mount, Right Angle Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - PC Card Sockets
Mfr JAE Electronics
Series ST19
Package Tape & Reel
Card Type Combo - microSD™, NANO SIM
Number of Positions 20
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Type Surface Mount, Right Angle
Features Board Guide, Switch
Height Above Board 0.051" (1.30mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 11.8µin (0.30µm)
Base Product Number ST19S020
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 670-2980-2,670-2980-1,670-2980-6
Standard Package 1,400
Win Source Part Number 1158983-ST19S020VCAR1400
Ultra Librarian 3D Model Ultra Librarian ST19S020VCAR1400 CAD Model

Description

The ST19S020VCAR1400 is a PC card socket connector from JAE Electronics.

  • Positions: 20
  • Features: Board Guide, Switch
  • Connector and Ejector Finish: Gold
  • Finish Thickness: 11.8µin (0.30µm)
  • Packaging: Tape & Reel
  • Height Above Board: 0.051 inches (1.30mm)
  • Card Support: microSD and Nano SIM
  • Mounting Angle: Right Angle
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
