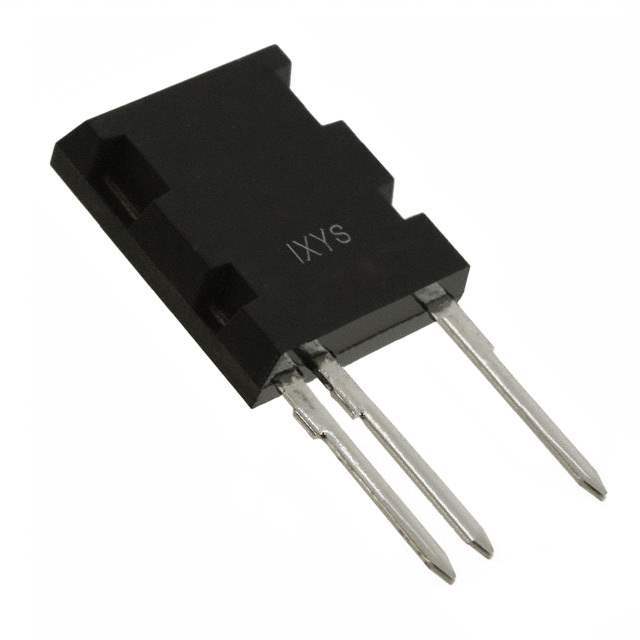

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1202245-IXTL2N470
Manufacturer IXYS
Category Discrete Semiconductor Products -Transistors- FETs, MOSFETs- Single FETs, MOSFETs
Package Tube
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 4700 V
Current - Continuous Drain (Id) @ 25°C 2A (Tc)
Mounting Type Through Hole
Supplier Device Package ISOPLUSi5-Pak™
Ultra Librarian 3D Model Ultra Librarian IXTL2N470 CAD Model

Description

The IXYS 1202245 is a N-Channel MOSFET transistor with a drain to source voltage (Vdss) of 4700 V.

  • Vdss: 4700 V
  • Category: Discrete Semiconductor Products, FETs and MOSFETs
  • Continuous Drain Current (Id): 2A @ 25°C
  • Package: Tube
  • Technology: MOSFET (Metal Oxide)
  • Supplier Device Package: ISOPLUSi5-Pak™
  • Status: Active
  • Mounting: Through Hole
