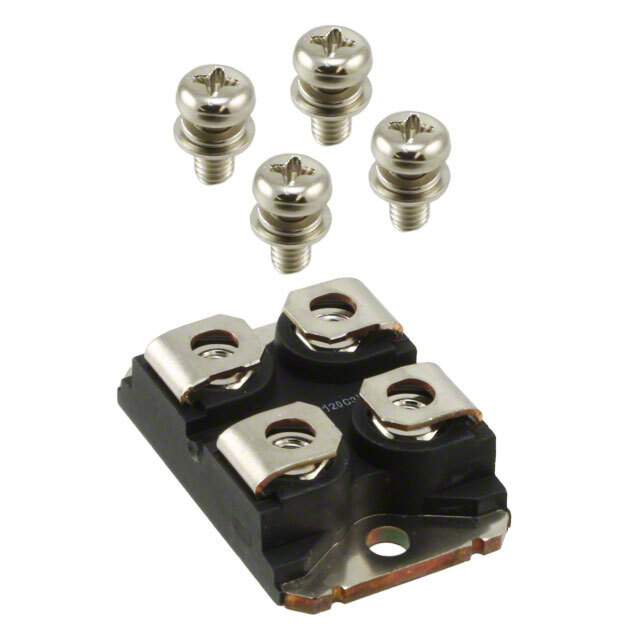

IXGN120N60A3D1 Real Image
Same model may have multiple batches, images only for reference.

IXGN120N60A3D1

Part No IXGN120N60A3D1
Manufacturer IXYS
Catalog IGBTs - Modules
Description IGBT 200A 600V SOT-227B / 600V GenX3 IGBTs next generation 600V IGBTs for power conversion applications
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer IXYS
IGBT Type PT
Configuration Single
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 200A
Power - Max 595W
Vce(on) (Maximum) at Vge, Ic 1.35V at 15V, 100A
Current - Collector Cutoff (Maximum) 650μA
Input Capacitance (Cies) at Vce 14.8nF at 25V
Input Standard
NTC Thermistor No
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package SOT-227-4, miniBLOC
Supplier Device Package SOT-227B
Part Number Series IXG*120N60
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810445-IXGN120N60A3D1
Ultra Librarian 3D Model Ultra Librarian IXGN120N60A3D1 CAD Model

Description

The IXYS Single Configuration Chassis Mount IGBT is a powerful and reliable component for your electronic needs.

  • Maximum Power: 595W
  • Current Collector: 200A
  • Supplier Device Package: SOT-227B
  • Manufacturer Package: miniBLOC
  • Temperature Range: -55°C to 150°C
  • Series: IXG*120N60
  • Supply: Limited
