Same model may have multiple batches, images only for reference.

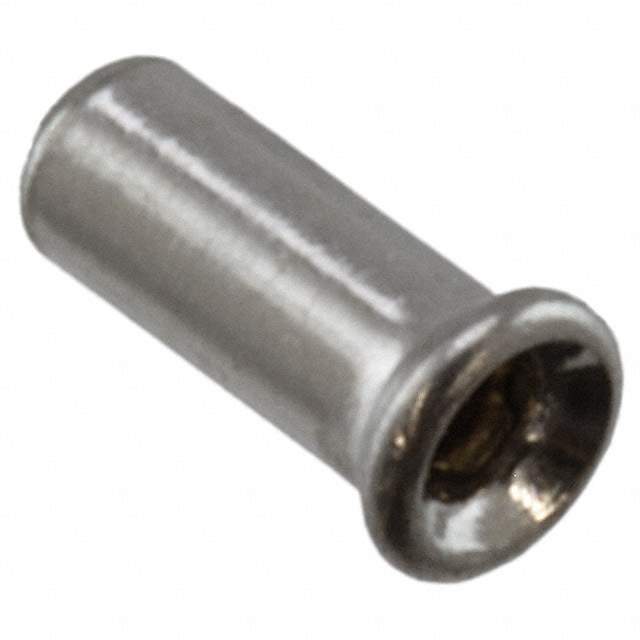

2-5331272-7 Real Image
Same model may have multiple batches, images only for reference.

2-5331272-7

Part No 2-5331272-7
Manufacturer TE Connectivity
Catalog Terminals
Description CONN PIN RCPT .022-.025 SOLDER / Pin Receptacle Connector 0.022" ~ 0.025" (0.56mm ~ 0.64mm) No Tail Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>PC Pin Receptacles, Socket Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Tail Type No Tail
Termination Solder
Length - Overall 0.138" (3.51mm)
Accepts Pin Diameter 0.022" ~ 0.025" (0.56mm ~ 0.64mm)
Mounting Hole Diameter 0.052" (1.32mm)
Flange Diameter 0.070" (1.77mm)
Socket Depth 0.125" (3.18mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Features Closed Bottom
Temperature Range - Operating -65°C ~ 126°C
Base Product Number 5331272
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 253312727,-2-5331272-7-SI,A32373
Standard Package 2,000
Win Source Part Number 1333486-2-5331272-7
Ultra Librarian 3D Model Ultra Librarian 2-5331272-7 CAD Model

Description

This TE Connectivity AMP Connectors product is a closed bottom PC pin receptacle socket connector that is solder terminated.

  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: beryllium copper
  • Pin Diameter: 0.022" to 0.025" (0.56mm to 0.64mm)
  • Mounting Hole Diameter: 0.052" (1.32mm)
  • Socket Depth: 0.125" (3.18mm)
  • Overall Length: 0.138" (3.51mm)
  • Flange Diameter: 0.070" (1.77mm)
  • Tail: no tail
  • Temperature Range: -65°C to 126°C
  • RoHS3 Compliant: yes
