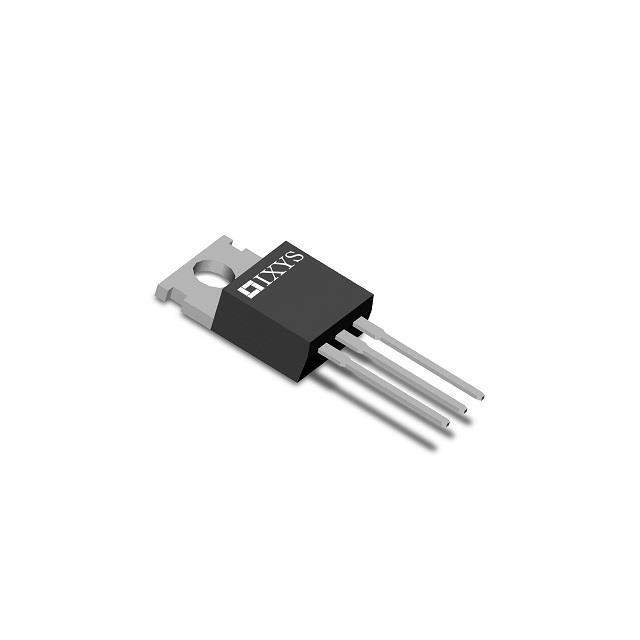

IXFP36N60X3 Real Image
Same model may have multiple batches, images only for reference.

IXFP36N60X3

Part No IXFP36N60X3
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET ULTRA JCT 600V 36A TO220  /  N-Channel 600 V 36A (Tc) 446W (Tc) Through Hole TO-220
Datasheet
IXFP36N60X3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr IXYS
Series HiPerFET™, Ultra X3
Package Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 36A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 90mOhm @ 18A, 10V
Vgs(th) (Max) @ Id 5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs 29 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 2030 pF @ 25 V
Power Dissipation (Max) 446W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-220
Package / Case TO-220-3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Names 238-IXFP36N60X3
Standard Package 50
Win Source Part Number 1118943-IXFP36N60X3
Ultra Librarian 3D Model Ultra Librarian IXFP36N60X3 CAD Model

Description

The IXFP36N60X3 is an N-Channel MOSFET transistor manufactured by IXYS.

  • Series: HiPerFET™, Ultra X3
  • Drain to Source Voltage (Vdss): 600 V
  • Current - Continuous Drain (Id) @ 25°C: 36A (Tc)
  • Rds On (Max) @ Id, Vgs: 90mOhm @ 18A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 2.5mA
  • Power Dissipation (Max): 446W (Tc)
  • Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds: 2030 pF @ 25 V
  • Temperature Range: -55°C to 150°C (TJ)
  • Mounting Type: Through-Hole
  • Package/Case: TO-220-3
  • Supplier Device Package: TO-220
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8541.29.0095
  • MSL Level: 1 (Unlimited)
