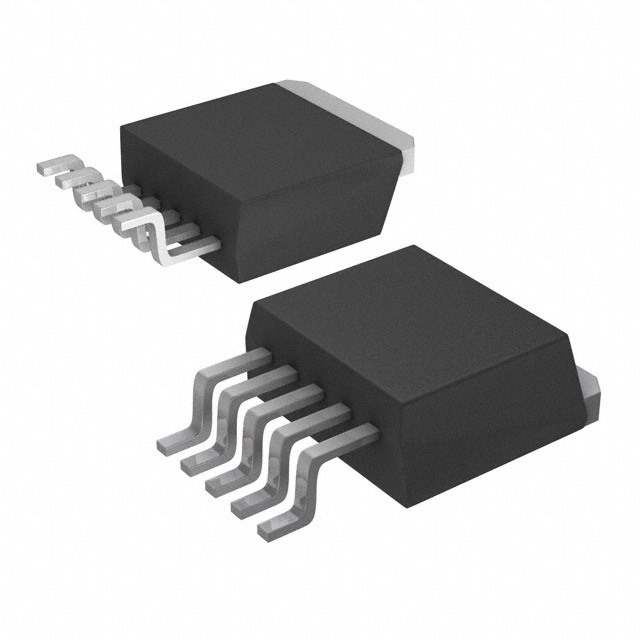

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type IGBT, N-Channel, P-Channel MOSFET
Supply Voltage - Operating 4.5 V to 35 V
Logic Voltage - VIL, VIH 0.8V, 3V
Current - Peak Output (Source, Sink) 14A, 14A
Input Type Non-Inverting
Rise and Fall Time 25ns, 18ns
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package TO-263-5
Win Source Part Number 085455-IXDN614YI
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IXDN614YI CAD Model

Description

The IXDN614YI is a single-channel low-side gate driver designed to drive IGBTs, N-channel, and P-channel MOSFETs. IXYS

  • Supply Voltage: 4.5V to 35V
  • Input Type: Non-inverting
  • Peak Output Current: 14A
  • Rise Time: 25ns
  • Fall Time: 18ns
  • Logic Voltage - VIL: 0.8V
  • Logic Voltage - VIH: 3V
  • Package: TO-263-5
  • Temperature Range: -55°C to 150°C
  • Popularity: High
