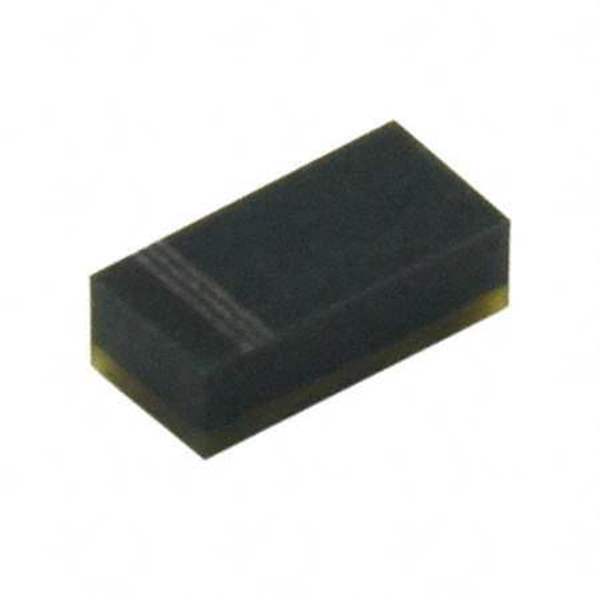

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 510 mV @ 500 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 22 ns
Current - Reverse Leakage @ Vr 20 µA @ 40 V
Capacitance @ Vr, F 170pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case 1005 (2512 Metric)
Supplier Device Package 1005/SOD-323F
Operating Temperature - Junction 125°C (Max)
Base Product Number CDBF0540
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 577793-CDBF0540-HF
Ultra Librarian 3D Model Ultra Librarian CDBF0540-HF CAD Model

Description

The CDBF0540-HF is a Schottky diode from Comchip Technology.

  • Type: Fast Recovery Diode
  • Maximum Reverse Voltage (Vr): 40V
  • Average Rectified Current (Io): 500mA
  • Forward Voltage (Vf): 510mV @ 500mA
  • Reverse Recovery Time (trr): 22ns
  • Current Leakage: 20μA @ 40V
  • Capacitance: 170pF @ 0V and 1MHz
  • Mounting Type: Surface Mount
  • Package: 1005 (2512 Metric)
  • Applications: Rectification, Voltage Clamping, and Switching Circuits
  • Manufacturer: Comchip Technology
