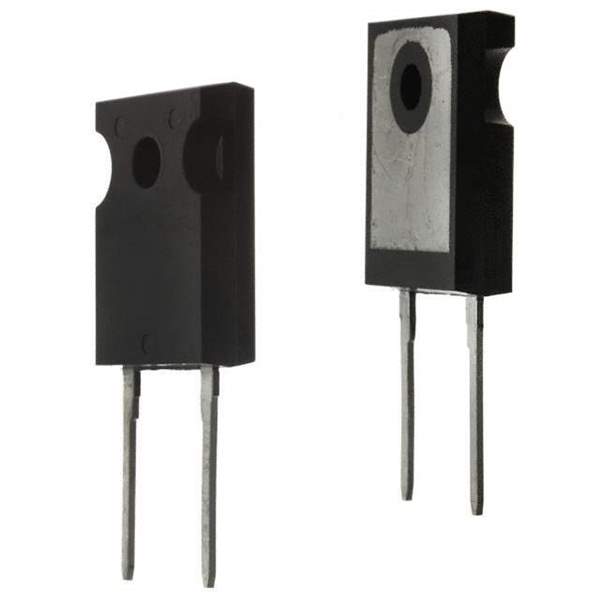

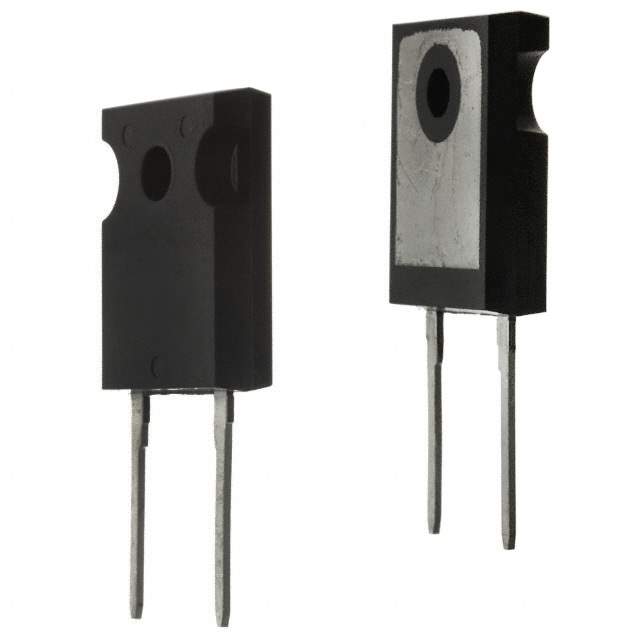

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) 45A
Voltage - Forward (Vf) (Maximum) @ If 1.28V @ 45A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 20μA @ 1200V
Capacitance @ Vr, F 18pF @ 400V, 1MHz
Mounting Style Through Hole
Package TO-247-2
Manufacturer Package TO-247AD
Operating Temperature - Junction -40°C ~ 175°C
Win Source Part Number 1169858-DSI45-12A
Manufacturer Homepage www.ixys.com
Family Name DSI45-12A
Introduction Date May 11, 2004
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DSI45-12A CAD Model

Description

This is a standard recovery diode manufactured by IXYS.

  • Current: 45A
  • Voltage: 1200V
  • Package: TO-247-2
  • Mounting: Through-Hole
  • Capacitance: 18pF @ 400V, 1MHz
  • Speed: >500ns, > 200mA (Io)
  • Operating Temperature: -40°C to 175°C
  • Dimensions: TO-247AD
  • Status: common-used part and has a high popularity
