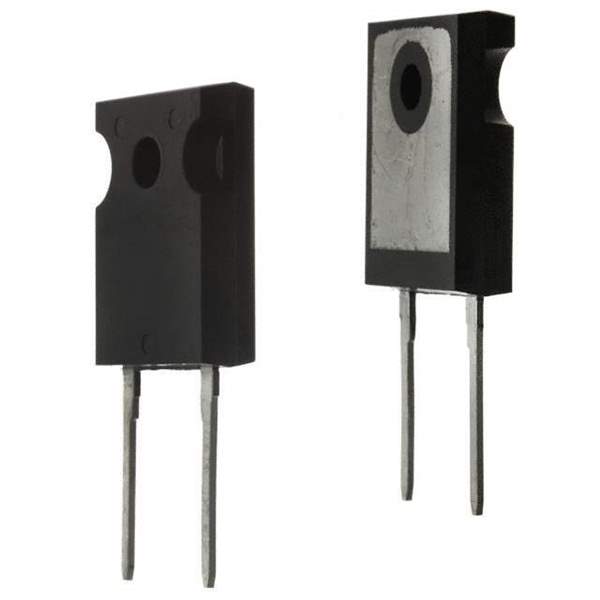

DPG60I300HA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr IXYS
Series HiPerFRED™
Package Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 300 V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 1.4 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 1 µA @ 300 V
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number DPG60I300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 30
Win Source Part Number 1184585-DPG60I300HA
Ultra Librarian 3D Model Ultra Librarian DPG60I300HA CAD Model

Description

The IXYS DPG60I300HA is a fast recovery diode that is part of the HiPerFRED™ series.

  • Package: 30
  • Voltage Rating: 300V
  • Average Rectified Current: 60A
  • Reverse Recovery Time: 35ns
  • REACH: Unaffected
  • HTSUS: 8541.10.0080
