Same model may have multiple batches, images only for reference.

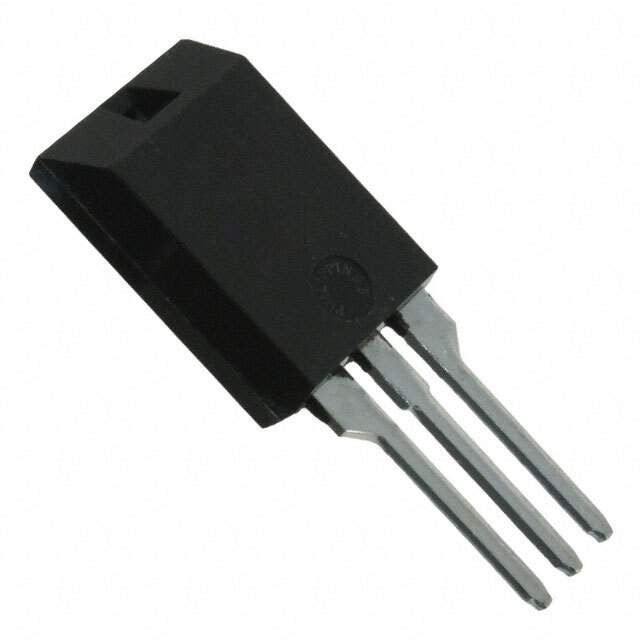

DSI30-12AC Real Image
Same model may have multiple batches, images only for reference.

DSI30-12AC

Part No DSI30-12AC
Manufacturer IXYS
Catalog Diodes, Rectifiers - Single
Description DIODE GEN 1.2KV 30A ISOPLUS220 / Diode 1.2KV 30A 2-Pin(2+Tab) ISOPLUS 220
Datasheet
DSI30-12AC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Maximum) @ If 1.45V @ 45A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50μA @ 1200V
Mounting Style Through Hole
Package ISOPLUS220
Manufacturer Package ISOPLUS220
Operating Temperature - Junction -55°C ~ 150°C
Win Source Part Number 773422-DSI30-12AC
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name DSI30-12AC
Introduction Date October 25, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian DSI30-12AC CAD Model

Description

The IXYS DSI30-12AC is a standard diode with a peak reverse voltage of 1200V and an average rectified current of 30A.

  • Mounting Style: Through Hole
  • Packaging: ISOPLUS220
  • Technology: MOSFET
  • Supplier Device Package: ISOPLUS220
  • Operating Temperature Range: -55°C to 150°C
  • Voltage Forward: 1.45V @ 45A
  • Current Reverse Leakage: 50μA @ 1200V
  • Family Name: DSI30-12AC
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Quantity per Package: 50
  • Estimated EOL Date: Obsolete/End of Life
