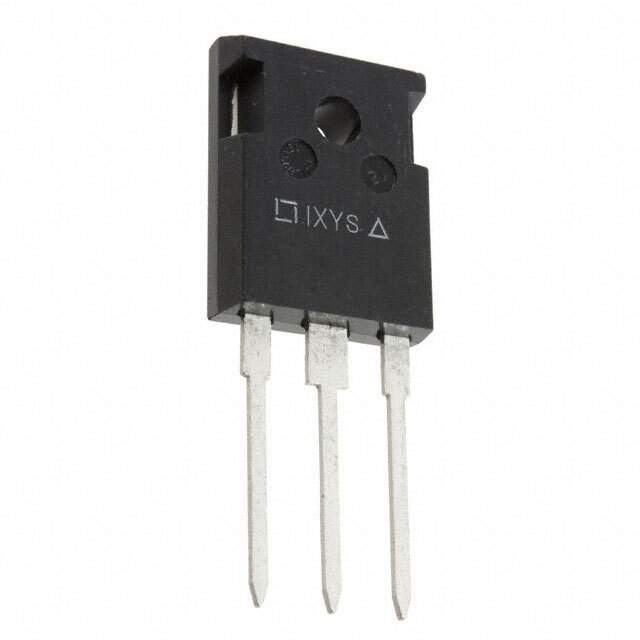

CS30-16IO1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Voltage - Off State 1600V
Voltage - Gate Trigger (Vgt) (Max) 1V
Current - Gate Trigger (Igt) (Max) 55mA
Voltage - On State (Vtm) (Max) 1.63V
Current - On State (It (AV)) (Max) 30A
Current - On State (It (RMS)) (Max) 49A
Current - Hold (Ih) (Max) 100mA
Current - Off State (Max) 50μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 400A, 430A
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 150°C
Mounting Through Hole
Case / Package TO-247AD
Win Source Part Number 1030328-CS30-16IO1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CS30-16IO1 CAD Model

Description

IXYS presents a high-performance SCR (Silicon Controlled Rectifier) with model number 1030328-CS30-16IO1.

  • Mounting: Through-hole
  • Packaging: Tube/rail
  • Maximum Holding Current: 100mA
  • Off-State Voltage: 1600V
  • Maximum Gate Trigger Voltage: 1V
  • Maximum Gate Trigger Current: 55mA
  • On-State Voltage: 1.63V
  • On-State Current (average): 30A
  • On-State Current (RMS): 49A
  • Maximum Off-State Current: 50μA
  • Non-Repetitive Surge Current (50Hz): 400A
  • Non-Repetitive Surge Current (60Hz): 430A
  • Type: Standard recovery
  • Category: Discrete semiconductor products
  • Operating Temperature Range: -40°C to 150°C
  • Package: TO-247AD
  • Popularity: Medium
  • Supply and Demand Status: Limited
