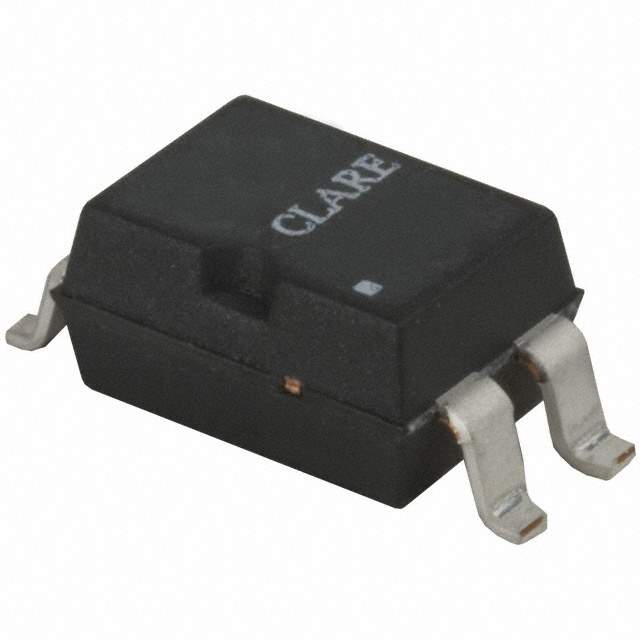

CPC1301GRTR Real Image
Same model may have multiple batches, images only for reference.

CPC1301GRTR

Part No CPC1301GRTR
Manufacturer IXYS
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV DARLINGTON 4-SMD
Datasheet
CPC1301GRTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer IXYS
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 1000% @ 1mA
Maximum DC Current Transfer Ratio 8000% @ 1mA
Switching Turn-On and Turn-Off Time 1μs, 80μs
Rise and Fall Time 40μs, 2.6μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 350V
Forward Voltage 1.2V
Continuous forward current- Max 1mA
Vce Saturation (Max) 1.2V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 1029976-CPC1301GRTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CPC1301GRTR CAD Model

Description

IXYS's CPC1301GRTR is a Darlington output optocoupler with an isolation voltage of 5000Vrms.

  • Isolation Voltage: 5000Vrms
  • Forward Voltage: 1.2V
  • Maximum Output Voltage: 350V
  • Category: Isolators
  • Supply and Demand: Balanced
  • Application: Designed for use in power supplies, motor controls, and other electronic circuits that require isolation
  • Minimum DC Current Transfer Ratio: 1000% @ 1mA
  • Maximum DC Current Transfer Ratio: 8000% @ 1mA
