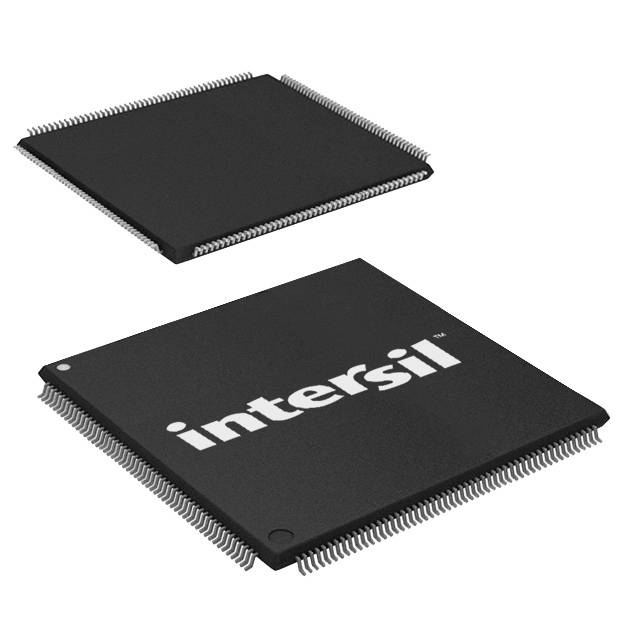

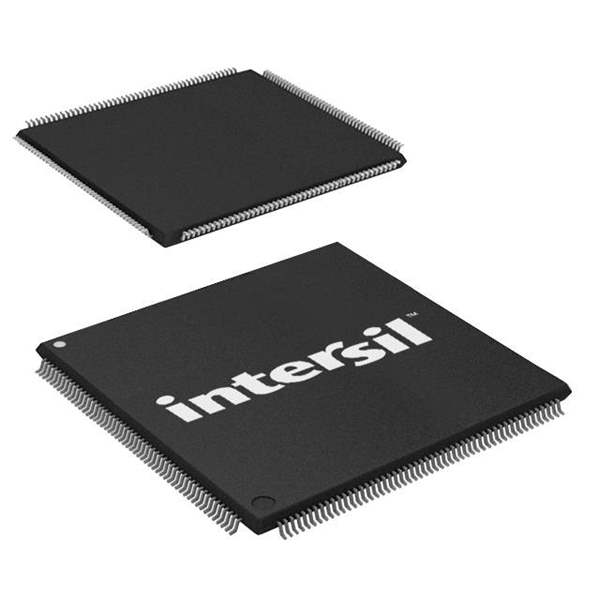

The Intersil TW8811 is a high-performance LCD video processor designed for automotive and embedded display applications. This processor integrates a comprehensive set of features to manage various video inputs and deliver high-quality video output to LCD panels. It is specifically engineered to provide robust video processing capabilities while minimizing power consumption, a crucial requirement for automotive applications.

Applications:

• Automotive Rearview Camera Systems
• In-Vehicle Infotainment (IVI) Systems
• Automotive Navigation Systems
• Portable DVD Players
• LCD Monitors and TVs

Features:

• Multiple Analog Video Inputs: Supports composite video (CVBS), S-Video, and component video (YPbPr) inputs.
• Integrated ADC: Includes built-in Analog-to-Digital Converters (ADCs) for converting analog video signals to digital format.
• Scalable Video Output: Features a scaler that allows the output resolution to be adjusted to match different LCD panel sizes.
• Deinterlacing Functionality: Advanced deinterlacing algorithms to reduce motion artifacts and improve picture quality.
• Color Processing: Adjustable brightness, contrast, saturation, and hue settings for optimal video output.
• On-Screen Display (OSD): Integrated OSD controller for displaying text and graphics on the video output.
• Panel Interface Support: Supports digital RGB and TTL interfaces for connecting to a variety of LCD panels.
• Low Power Consumption: Designed for low power operation to extend battery life in portable applications.
• Advanced Noise Reduction: Includes noise reduction filters to minimize video noise and improve image clarity.

Benefits:

• Superior Video Quality: Delivers clear and vibrant video output with minimal artifacts.
• Flexible Video Input Options: Supports a wide range of video input formats, making it compatible with various video sources.
• Customizable Display Settings: Provides adjustable color and display settings for optimal viewing experience.
• Reduced System Complexity: Integrates multiple video processing functions into a single chip, simplifying system design.
• Energy Efficient: Low power consumption makes it suitable for battery-powered applications.

Additional Details: The TW8811 typically operates with a 3.3V power supply for digital circuits and a 1.8V supply for core logic. It includes built-in test patterns for simplified system testing and calibration. The device supports a wide temperature range, making it suitable for use in automotive environments. It is packaged in a compact form factor to facilitate integration into space-constrained applications.
