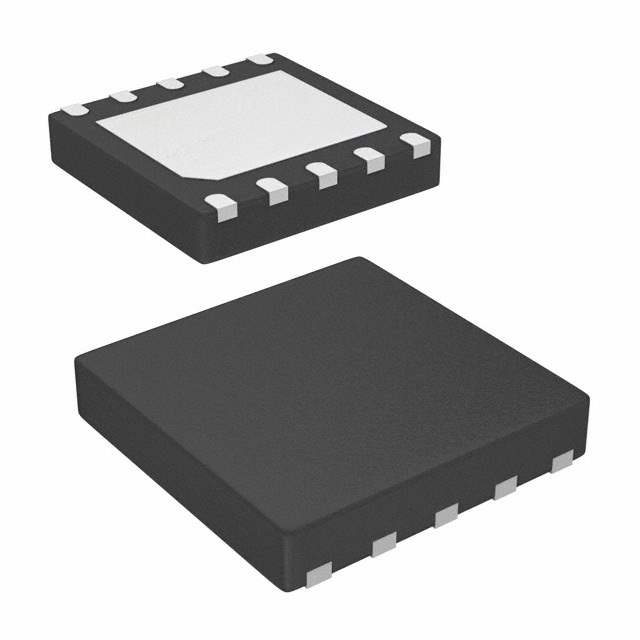

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Active
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 8 V to 14 V
Logic Voltage - VIL, VIH 1.4V, 2.2V
Current - Peak Output (Source, Sink) 3A, 4A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 114V
Rise and Fall Time 9ns, 7.5ns
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 10-TDFN (4x4)
Win Source Part Number 069879-ISL2111ARTZ-T
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ISL2111ARTZ-T CAD Model

Description

The ISL2111ARTZ-T is a high-performance half-bridge gate driver from Intersil that is designed to drive N-channel MOSFETs in a variety of applications.

  • Channels: Two independent channels
  • Operating Voltage: 8V to 14V
  • Rise Time: 9ns
  • Fall Time: 7.5ns
  • Peak Output Current: 3A and 4A
  • Package: 10-TDFN (4x4)
  • Operating Temperature Range: -40°C to 125°C
  • Application: High-speed switching applications, such as motor drives, power supplies, and inverters
