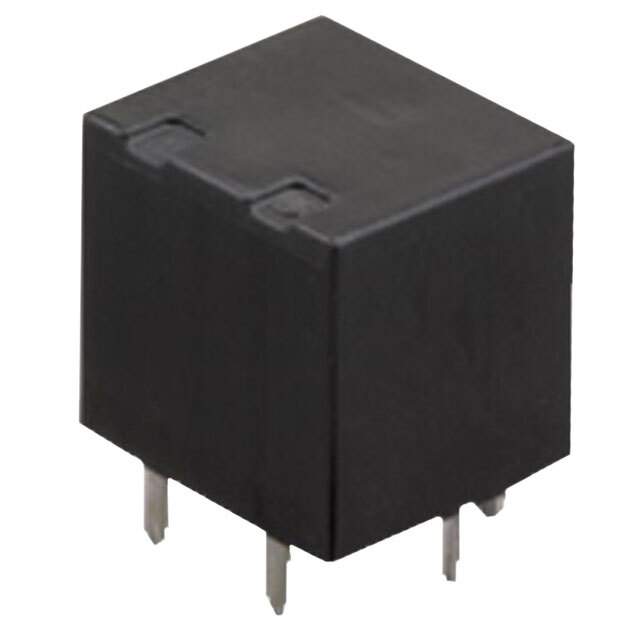

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Coil Type Non Latching
Coil Current 66.7mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C) x 2
Contact Rating (Current) 20A
Switching Voltage 14VDC - Nom
Must Operate Voltage 6.5 VDC
Must Release Voltage 0.8 VDC
Operate Time 10ms
Release Time 10ms
Features Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 800mW
Coil Resistance 180 Ohms
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Win Source Part Number 1135260-ACJ2112
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACJ2112 CAD Model

Description

The Panasonic Electric Works relay is a high-quality component designed for use in a variety of applications.

  • With a sealed, fully feature, and SPDT (1 Form C) x 2 contact form, this relay is an excellent choice for those who need reliable performance.
  • The contact material is silver alloy, cadmium-free, and the coil resistance is 180 Ohms.
  • The switching voltage is 14VDC - Nom, and the must operate voltage is 6.5 VDC.
  • The must release voltage is 0.8 VDC.
  • This relay has a contact rating of 20A and a coil power of 800mW.
  • The operating temperature range is -40°C ~ 85°C, making it suitable for use in a wide range of environments.
  • The Panasonic Electric Works relay is available in a tube packaging and has a manufacturer pack quantity of 40.
