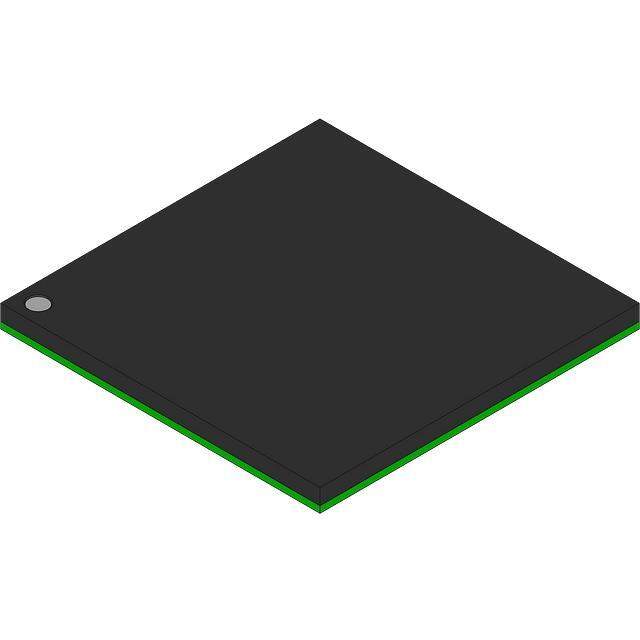

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Intel
Series MAX® II
Package Tray
Programmable Type In System Programmable
Delay Time tpd(1) Max 6.2 ns
Voltage Supply - Internal 1.71V ~ 1.89V
Number of Logic Elements/Blocks 1270
Number of Macrocells 980
Number of I/O 212
Temperature Range - Operating 0°C ~ 85°C (TJ)
Mounting SMD (SMT)
Package / Case 256-BGA
Supplier Device Package 256-FBGA (17x17)
Base Product Number EPM1270
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Names 974595,-544-1328,544-1328
Standard Package 90
Win Source Part Number 1057330-EPM1270GF256C4
Ultra Librarian 3D Model Ultra Librarian EPM1270GF256C4 CAD Model

Description

The EPM1270GF256C4 is a Complex Programmable Logic Device (CPLD) from Intel.

  • Manufacturer: Intel
  • Type: Complex Programmable Logic Device (CPLD)
  • Series: MAX® II
  • Package: Tray
  • I/O: 212
  • Programmable In-System: Yes
  • Delay Time tpd(1) max: 6.2 ns
  • Voltage Supply - Internal: 1.71V ~ 1.89V
  • Logic Elements/Blocks: 1270
  • Macrocells: 980
  • Package Type: 256-BGA
  • Supplier Device Package: 256-FBGA (17x17)
  • Operating Temperature: 0°C ~ 85°C (TJ)
