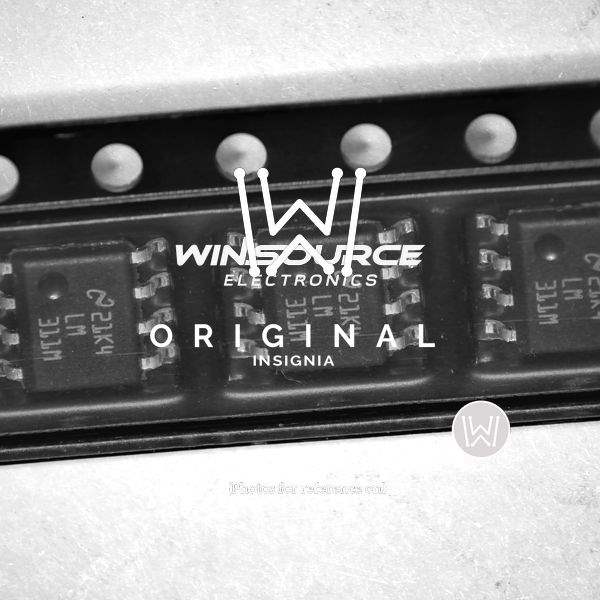

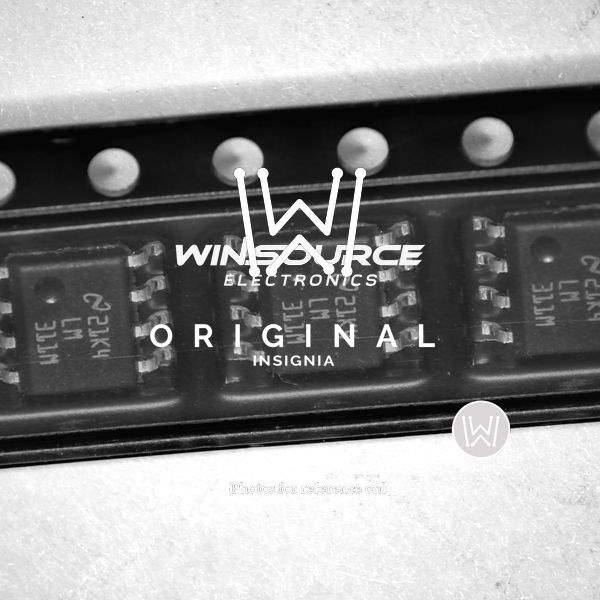

The ON Semiconductor LM311MX is a single high-speed voltage comparator known for its reliability and versatility across a wide range of applications. Designed to operate over a wide range of supply voltages, from standard ±15V operational amplifier supplies down to the single 5V supply used for IC logic, the LM311MX provides a robust solution for custom electronics design.

Key Features

• Voltage Range: The device is capable of functioning with a dual supply voltage ranging from ±2V to ±18V, or a single supply voltage from 5V to 36V, providing flexibility in various circuit configurations.
• Output Compatibility: Its open-collector output can be connected to other voltage levels, regardless of the supply voltage, making it compatible with TTL, MOS, and CMOS logic systems.
• Input Offset Voltage: The LM311MX features a typical input offset voltage of 2mV and an input offset current of 20nA, ensuring precise operation and minimal error in voltage comparison.
• Response Time: With a typical response time of 200ns, this comparator is suitable for high-speed applications that require fast switching.
• Package: The device is offered in an SOIC-8 package, which is ideal for space-constrained applications while allowing for ease of integration into various circuit designs.

Applications

The LM311MX is widely used in numerous electronic applications due to its versatile nature. Some common applications include:

• Limit comparators
• Simple analog to digital converters
• Relay drivers
• Pulse generators
• Voltage monitors
• Motor controllers

Conclusion

With its fast response time, flexible power supply requirements, and compatibility with various logic systems, the ON Semiconductor LM311MX voltage comparator is an excellent choice for designers looking to create efficient and reliable electronic systems. Its small form factor and robust feature set ensure that it can be applied to a wide range of industrial, automotive, and consumer electronics, making it a staple component in the field of electronic design and automation.
