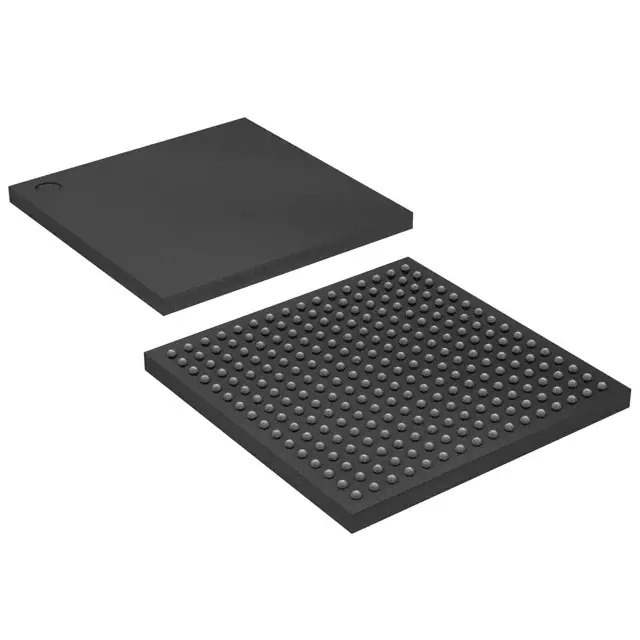

5M2210ZF256I5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Intel
Series MAX® V
Package Tray
Product Status Active
Programmable Not Verified
Programmable Type In System Programmable
Delay Time tpd(1) Max 7 ns
Voltage Supply - Internal 1.71V ~ 1.89V
Number of Logic Elements/Blocks 2210
Number of Macrocells 1700
Number of I/O 203
Temperature Range - Operating -40°C ~ 100°C (TJ)
Mounting Type Surface Mount
Package / Case 256-LBGA
Supplier Device Package 256-FBGA (17x17)
Base Product Number 5M2210Z
Standard Package 90 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A2A
HTSUS 8542.39.0001
Win Source Part Number 856776-5M2210ZF256I5
Ultra Librarian 3D Model Ultra Librarian 5M2210ZF256I5 CAD Model

Description

The 856776-5M2210ZF256I5 is an embedded CPLD (Complex Programmable Logic Device) from the MAX® V series manufactured by Intel.

  • Package: Tray
  • Standard Package: 90 pieces
  • I/O Pins: 203
  • Programmable: In-system
  • Delay Time tpd(1) max: 7 ns
  • Voltage Supply: 1.71V to 1.89V
  • Logic Elements/Blocks: 2,210
  • Macrocells: 1,700
  • Mounting Type: Surface-mount
  • Package/Case: 256-LBGA
  • Temperature Range: -40°C to 100°C
  • ECCN Code: 3A001A2A
  • MSL Level: 3
  • REACH status: REACH unaffected
  • HTSUS code: 8542.39.0001
  • Status: Active
