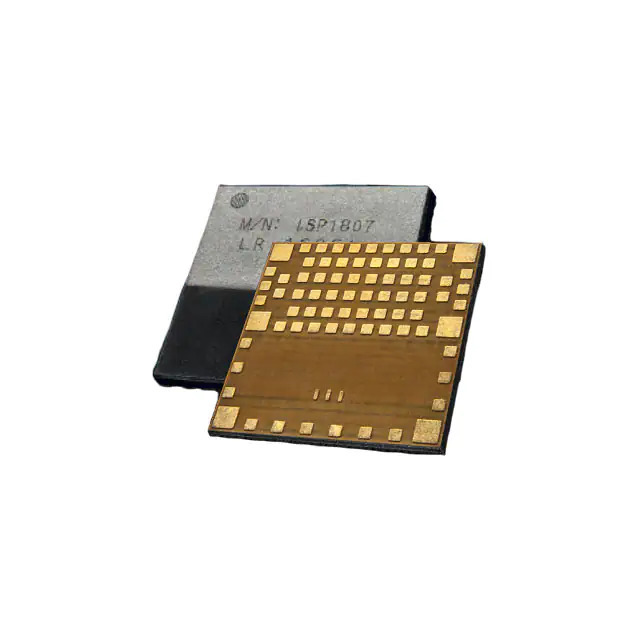

ISP1807-LR-RS Insight SIP
Same model may have multiple batches, images only for reference.

ISP1807-LR-RS

Part No ISP1807-LR-RS
Manufacturer Insight SIP
Catalog RF Transceiver Modules
Description RF TXRX MODULE BT TRC ANT SMD / Bluetooth Bluetooth v5.0, Thread, Zigbee® Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Trace Surface Mount
Datasheet
ISP1807-LR-RS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Insight SIP
Series -
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth
Protocol Bluetooth v5.0, Thread, Zigbee®
Modulation -
Frequency 2.402GHz ~ 2.48GHz
Data Rate 2Mbps
Power - Output 8dBm
Sensitivity -103.3dBm
Serial Interfaces ADC, I²C, SPI, UART, USB
Antenna Type Integrated, Trace
Utilized IC / Part nRF52840
Memory Size 1MB Flash, 256kB RAM
Voltage - Supply 1.7V ~ 5.5V
Current - Receiving 6.26mA
Current - Transmitting 16.4mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number ISP1807
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1354067-ISP1807-LR-RS
Ultra Librarian 3D Model Ultra Librarian ISP1807-LR-RS CAD Model

Description

The 1354067-ISP1807-LR-RS is an RF transceiver module from Insight SIP.

  • Frequency: 2.402GHz to 2.48GHz
  • Protocols: Bluetooth v5.0, Thread, Zigbee®
  • Voltage Supply: 1.7V to 5.5V
  • Memory Size: 1MB Flash, 256kB RAM
  • ECCN: 5A992C
  • Power Output: 8dBm
  • Sensitivity: -103.3dBm
  • Serial Interfaces: ADC, I²C, SPI, UART, USB
