Same model may have multiple batches, images only for reference.

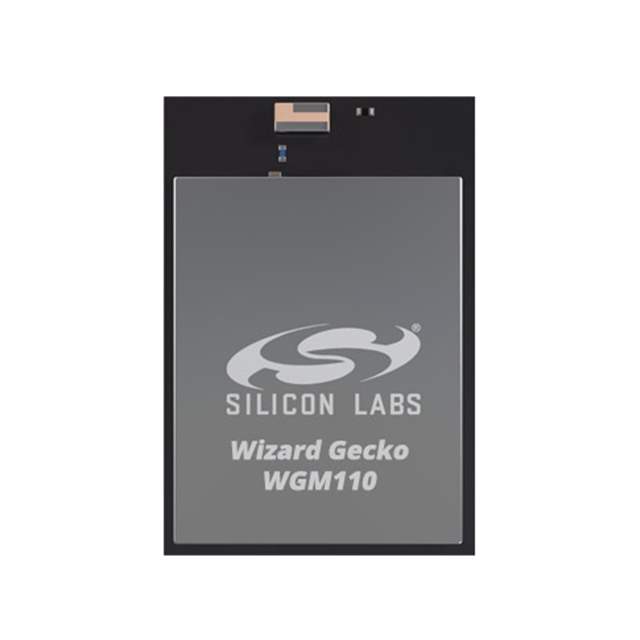

WGM110E1MV2R Real Image
Same model may have multiple batches, images only for reference.

WGM110E1MV2R

Part No WGM110E1MV2R
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RF TXRX MODULE WIFI U.FL SMD / WiFi 802.11b/g/n Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
Datasheet
WGM110E1MV2R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Silicon Labs
Series Wizard Gecko
Package Tape & Reel
Product Status Obsolete
RF Family/Standard WiFi
Protocol 802.11b/g/n
Frequency 2.4GHz
Data Rate 72.2Mbps
Power - Output 16dBm
Sensitivity -98dBm
Serial Interfaces I2C, SPI, UART, USB
Antenna Type Antenna Not Included, U.FL
Memory Size 1MB Flash, 128kB RAM
Voltage - Supply 2.7V ~ 4.8V
Current - Receiving 81mA
Current - Transmitting 261mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number WGM110
Standard Package 500
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1350275-WGM110E1MV2R
Ultra Librarian 3D Model Ultra Librarian WGM110E1MV2R CAD Model

Description

The Silicon Labs 1350275-WGM110E1MV2R is an RF transceiver module and modem from the Wizard Gecko series. Silicon Labs

  • Frequency: 2.4GHz
  • Protocol: 802.11b/g/n
  • Data Rate: 72.2Mbps
  • Memory Size: 1MB Flash, 128kB RAM
  • Antenna Type: U.FL, Not Included
  • Power Output: 16dBm
  • Sensitivity: -98dBm
  • Receiving Current: 81mA
  • Transmitting Current: 261mA
  • Serial Interfaces: I2C, SPI, UART, USB
  • Voltage Supply: 2.7V to 4.8V
  • Mounting Type: Surface Mount
  • Package: Module
  • Operating Temperature: -40°C to 85°C
  • Series: WGM110
