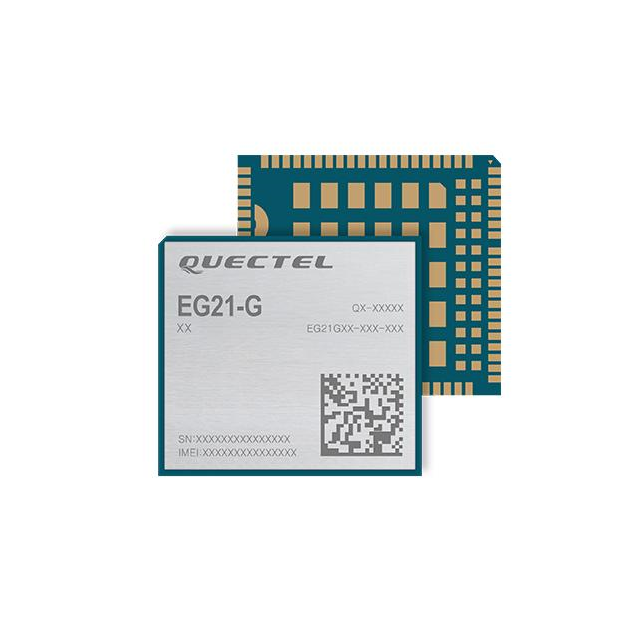

Same model may have multiple batches, images only for reference.

EG21GGB-128-SGNS

Name: EG21GGB-128-SGNS
Brand: Quectel
SKU: 1349986
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EG21GGB-128-SGNS
Manufacturer	Quectel
Catalog	RF Transceiver Modules
Description	RF TXRX MOD CELL/NAV CARD EDGE / Cellular, Navigation BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GPRS, GSM, HSPA+, LTE, UMTS, WCDMA Transceiver Module Antenna Not Included Card Edge
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Transceiver Modules and Modems
Mfr	Quectel
Package	Tape & Reel
RF Family/Standard	Cellular, Navigation
Protocol	BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GPRS, GSM, HSPA+, LTE, UMTS, WCDMA
Data Rate	42Mbps
Power - Output	33dBm
Sensitivity	-110.5dBm
Serial Interfaces	I²C, PCM, UART, USB
Antenna Type	Antenna Not Included
Voltage - Supply	3V ~ 3.6V
Mounting Type	Card Edge
Temperature Range - Operating	-30°C ~ 75°C
Package / Case	Module
Base Product Number	EG21
Standard Package	250
MSL Level	3 (168 Hours)
ECCN	5A992C SC
HTSUS	8517.62.0090
Win Source Part Number	1349986-EG21GGB-128-SGNS
Ultra Librarian 3D Model	Ultra Librarian EG21GGB-128-SGNS CAD Model

Description

The Quectel EG21GGB-128-SGNS is a cellular and navigation RF transceiver module.

Protocols: BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GPRS, GSM, HSPA+, LTE, UMTS, WCDMA
Data Rate: 42Mbps
Power - Output: 33dBm
Voltage - Supply: 3V ~ 3.6V
Operating Temperature: -30°C ~ 75°C
Mounting Type: Card Edge
Package / Case: Module
Serial Interfaces: I²C, PCM, UART, USB
