ENW-89823A5KF

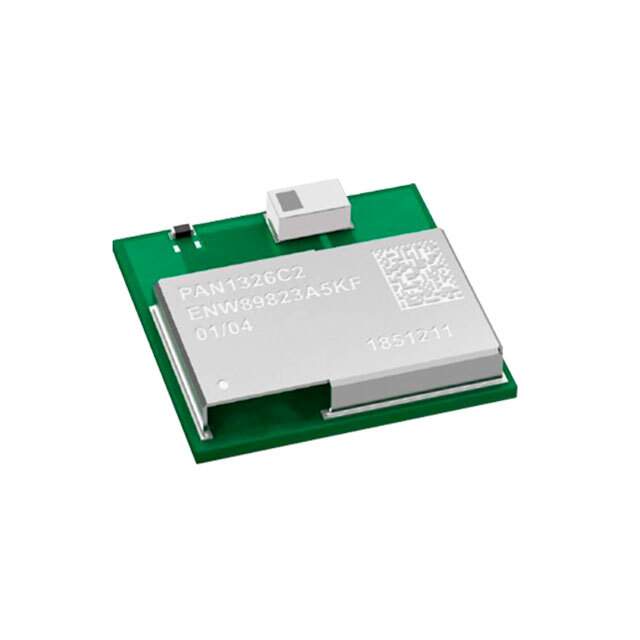

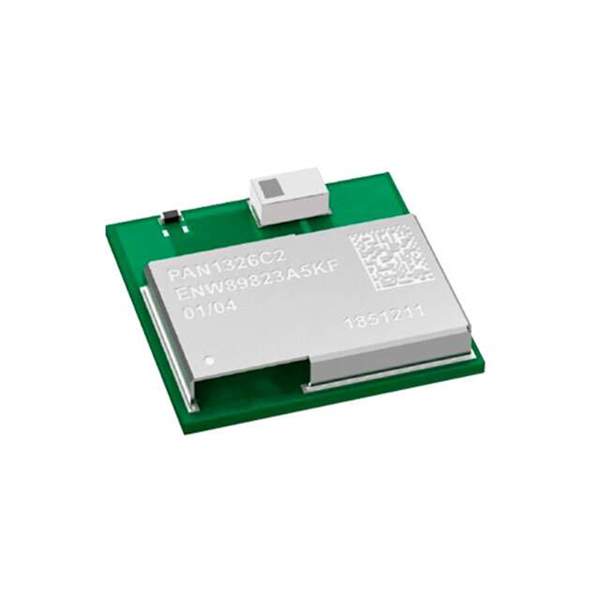

Part No ENW-89823A5KF
Manufacturer Panasonic
Catalog RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH CHIP SMD / Bluetooth Bluetooth v4.2 Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Chip Surface Mount
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Panasonic Electronic Components
Series PAN1326C2
Package Tape & Reel
RF Family/Standard Bluetooth
Protocol Bluetooth v4.2
Modulation GFSK
Frequency 2.402GHz ~ 2.48GHz
Data Rate 4Mbps
Power - Output 10dBm
Sensitivity -92dBm
Serial Interfaces GPIO, PCM, UART
Antenna Type Integrated, Chip
Utilized IC / Part CC2564C
Voltage - Supply 1.7V ~ 4.8V
Current - Receiving 20mA
Current - Transmitting 40mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case Module
Base Product Number ENW-89
Standard Package 500
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1349134-ENW-89823A5KF
Ultra Librarian 3D Model Ultra Librarian ENW-89823A5KF CAD Model

Description

The PAN1326C2 is an RF transceiver module designed for Bluetooth v4.2 protocol.

  • Frequency Range: 2.402GHz to 2.48GHz
  • Data Rate: 4Mbps
  • Antenna: integrated chip antenna
  • Power Output: 10dBm
  • Sensitivity: -92dBm
  • IC/Part Utilized: CC2564C
  • Serial Interfaces: GPIO, PCM, and UART
  • Voltage Range: 1.7V to 4.8V
  • Mounting Type: surface mount
  • Operating Temperature: -40°C to 85°C
  • Packaging: tape and reel
  • Standard Package: 500
