Same model may have multiple batches, images only for reference.

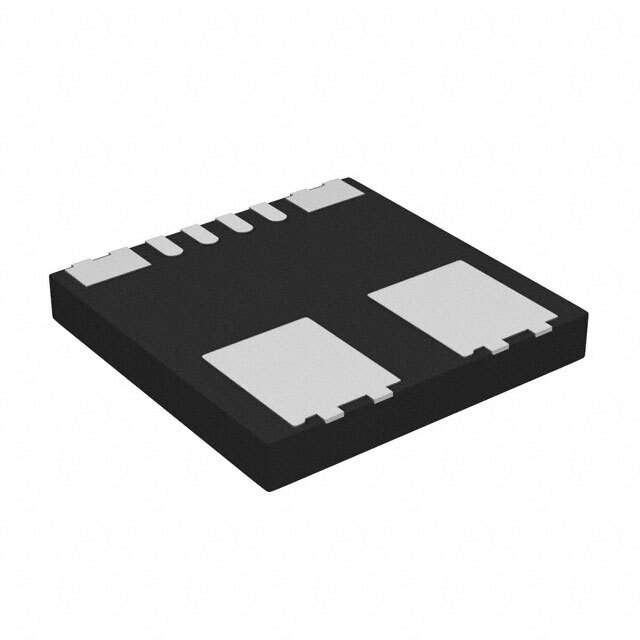

TLI4970D025T5XUMA1 Real Image
Same model may have multiple batches, images only for reference.

TLI4970D025T5XUMA1

Part No TLI4970D025T5XUMA1
Manufacturer Infineon Technologies
Catalog Current Transducers
Description SENSOR CURRENT HALL 25A 8TISON / Current Sensor 25A 1 Channel Hall Effect, Differential Unidirectional 8-PowerTDFN
Datasheet
TLI4970D025T5XUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Differential
Current - Sensing 25A
Number of Channels 1
Output SPI
Frequency DC ~ 18kHz
Linearity ±1.6%
Accuracy ±3.5%
Voltage - Supply 3.1V ~ 3.5V
Response Time 57µs
Current - Supply (Max) 20mA
Temperature Range - Operating -40°C ~ 85°C
Polarization Unidirectional
Mounting SMD (SMT)
Package / Case 8-PowerTDFN
Supplier Device Package PG-TISON-8-1
Base Product Number TLI4970
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names IFEINFTLI4970D025T5XUMA1,TLI4970D025T5XUMA1TR,TLI4970D025T5XUMA1CT,SP001323150,2156-TLI4970D025T5XUMA1,TLI4970D025T5XUMA1DKR
Standard Package 2,000
Win Source Part Number 1022402-TLI4970D025T5XUMA1
Ultra Librarian 3D Model Ultra Librarian TLI4970D025T5XUMA1 CAD Model

Description

The TLI4970D025T5XUMA1 is a differential Hall effect current sensor from Infineon Technologies.

  • Current Sensing Range: 25 A
  • Polarization: Unidirectional
  • Sensitivity: ±1.6%
  • Accuracy: ±3.5%
  • Voltage Supply: 3.1 V to 3.5 V
  • Response Time: 57 μs
  • Package: 8-PowerTDFN
  • Operating Temperature: -40°C to 85°C
  • Applications: automotive systems, battery management, and power supplies
