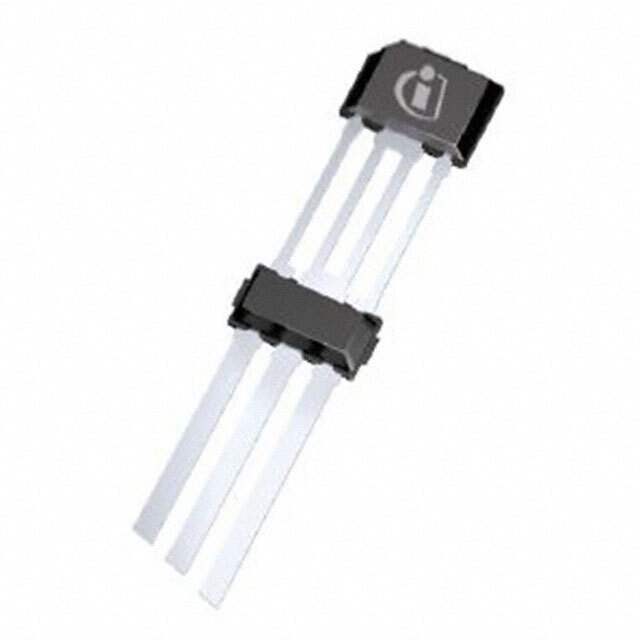

TLE4929CXANM28HAMA1 Real Image
Same model may have multiple batches, images only for reference.

TLE4929CXANM28HAMA1

Part No TLE4929CXANM28HAMA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR HALL EFFECT ANALOG SO-3 / Hall Effect Sensor Single Axis PG-SSO-3-52
Datasheet
TLE4929CXANM28HAMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Linear, Compass (ICs)
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Cut Tape (CT) Tape & Box (TB)
Technology Hall Effect
Axis Single
Output Type Analog Voltage
Sensing Range ±120mT
Voltage - Supply 4V ~ 16V
Current - Supply (Max) 13.4mA
Current - Output (Max) 15mA
Resolution 16 b
Temperature Range - Operating -40°C ~ 185°C (TJ)
Supplier Device Package PG-SSO-3-52
Mounting Type Through Hole
Package / Case 3-SIP Module
Base Product Number TLE4929
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1345327-TLE4929CXANM28HAMA1
Ultra Librarian 3D Model Ultra Librarian TLE4929CXANM28HAMA1 CAD Model

Description

The TLE4929CXANM28HAMA1 is a Hall Effect magnetic sensor suitable for automotive applications.

  • Axis: Single-Axis
  • Sensing Range: ±120mT
  • Resolution: 16 bits
  • Output Type: Analog Voltage
  • Voltage Supply Range: 4V to 16V
  • Maximum Current Supply: 13.4mA
  • Maximum Current Output: 15mA
  • Package: 3-SIP Module
  • Operating Temperature Range: -40°C to 185°C (TJ)
  • REACH: Unaffected
  • ECCN: EAR99
  • Application: Automotive
