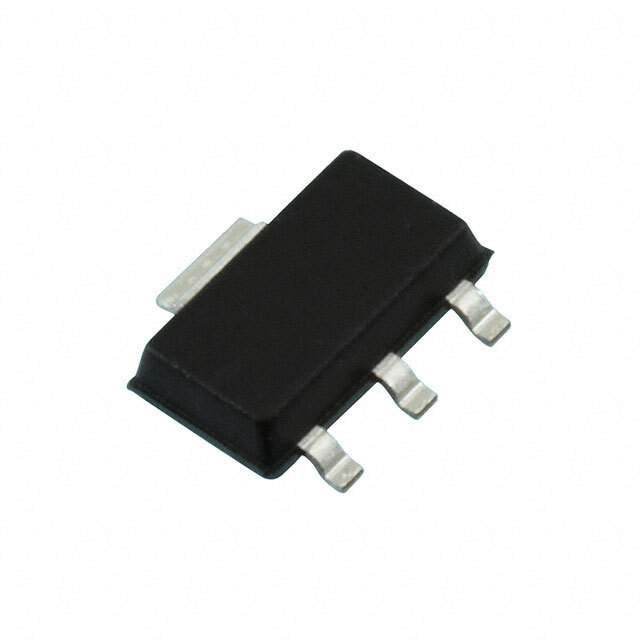

HAL505SF-A Real Image
Same model may have multiple batches, images only for reference.

HAL505SF-A

Part No HAL505SF-A
Manufacturer Micronas GmbH
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAGNETIC SWITCH LATCH SOT89B-1 / Digital Switch Latch Open Drain Hall Effect SOT-89B-1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr TDK-Micronas GmbH
Series HAL® 5xy
Package Tape & Reel (TR)
Product Status Obsolete
Function Latch
Technology Hall Effect
Polarization South Pole
Sensing Range 17mT Trip, -17mT Release
Test Condition 25°C
Voltage - Supply 3.8V ~ 24V
Current - Supply (Max) 4.2mA
Current - Output (Max) 20mA
Output Type Open Drain
Features Temperature Compensated
Temperature Range - Operating -40°C ~ 170°C (TJ)
Mounting SMD (SMT)
Supplier Device Package SOT-89B-1
Package / Case TO-243AA, Variant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 2,000
Win Source Part Number 1131393-HAL505SF-A
Ultra Librarian 3D Model Ultra Librarian HAL505SF-A CAD Model

Description

The HAL505SF-A is a magnetic sensor switch IC that is designed to detect the presence of a magnetic field.

  • Function: Latching
  • Output: Open Drain
  • Sensing Range: 17mT trip and -17mT release
  • Input Voltage Range: 3.8V to 24V
  • Package: TO-243AA, Variant
  • Mounting: SMD (SMT)
