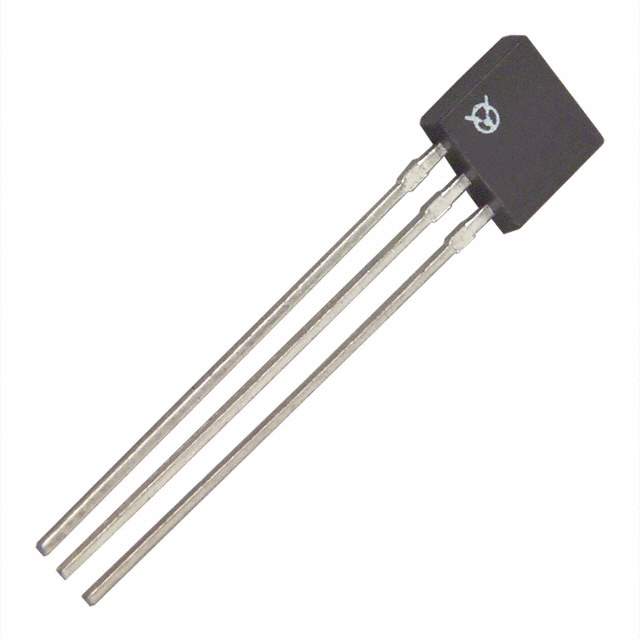

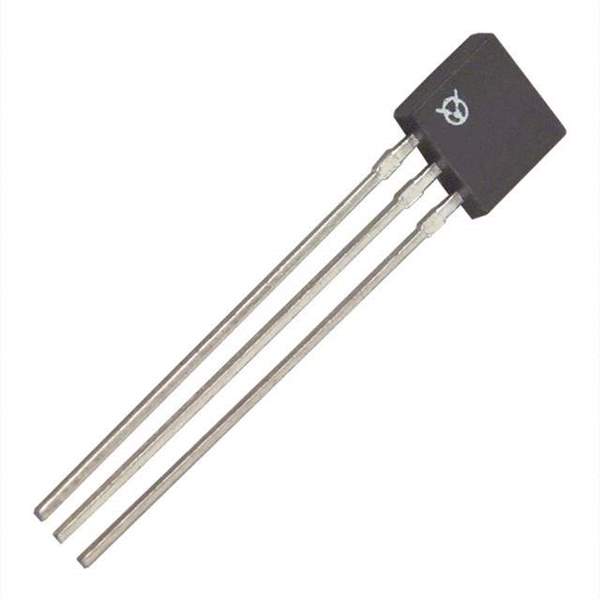

OHN3140U Real Image
Same model may have multiple batches, images only for reference.

OHN3140U

Part No OHN3140U
Manufacturer TT Electronics
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAGNETIC SWITCH UNIPOLAR TO92-3 / Digital Switch Unipolar Switch Open Collector Hall Effect TO-92-3
Datasheet
OHN3140U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr TT Electronics/Optek Technology
Series OHN3100
Package Bulk
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 26mT Trip, 2.5mT Release
Test Condition -20°C ~ 85°C
Voltage - Supply 4.5V ~ 24V
Current - Supply (Max) 7mA
Current - Output (Max) 25mA
Output Type Open Collector
Temperature Range - Operating -20°C ~ 85°C (TA)
Mounting Type Through Hole
Supplier Device Package TO-92-3
Package / Case 3-SSIP
Base Product Number OHN3140
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Other Names OHN3140U-ND,365-1571
Standard Package 1,000
Win Source Part Number 1131912-OHN3140U
Ultra Librarian 3D Model Ultra Librarian OHN3140U CAD Model

Description

The OHN3140U is a magnetic sensor switch from TT Electronics/Optek Technology.

  • Category: Sensors, Transducers
  • Series: OHN3100
  • Technology: Hall Effect
  • Output Type: open collector
  • Switch Type: unipolar switch
  • Polarization: south pole
  • Sensing Range (Trip): 26mT
  • Sensing Range (Release): 2.5mT
  • Current Supply: 7mA
  • Output Current: 25mA
  • Voltage Supply Range: 4.5V to 24V
  • Package Type: 3-SSIP
  • Packaging: bulk
  • Standard Package: 1,000
  • RoHS Compliant: yes
  • ECCN: EAR99
