Same model may have multiple batches, images only for reference.

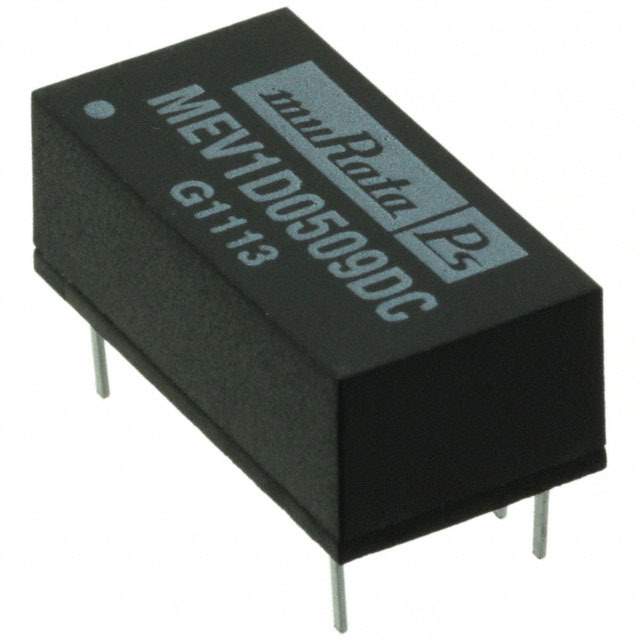

MEV1D0509DC Real Image
Same model may have multiple batches, images only for reference.

MEV1D0509DC

Part No MEV1D0509DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 3kVDC Isolated 1W Single & Dual Output DC/DC Converters | DC DC CONVERTER +/-9V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Minimum) 4.5V
Voltage - Input (Maximum) 5.5V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Maximum) 56mA, 56mA
Power (W) 1W
Voltage - Isolation 3kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting Style Through Hole
Manufacturer Package 14-DIP Module, 6 Leads
Parts Dimension 0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.0mm)
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1221728-MEV1D0509DC
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MEV1D0509DC CAD Model

Description

The Murata Power Solutions isolated module is a high-quality module.

  • Voltage Isolation: 3kV
  • Number of Outputs: 2
  • Voltage Output 1: 9V
  • Voltage Output 2: -9V
  • Efficiency: 87%
  • Mounting Type: Through-Hole
  • Application: Power Supplies, Board Mount, Commercial ITE
  • Package: 14-DIP Module, 6 Leads
  • Packaging: Tube
  • Supply and Demand Status: Limited
