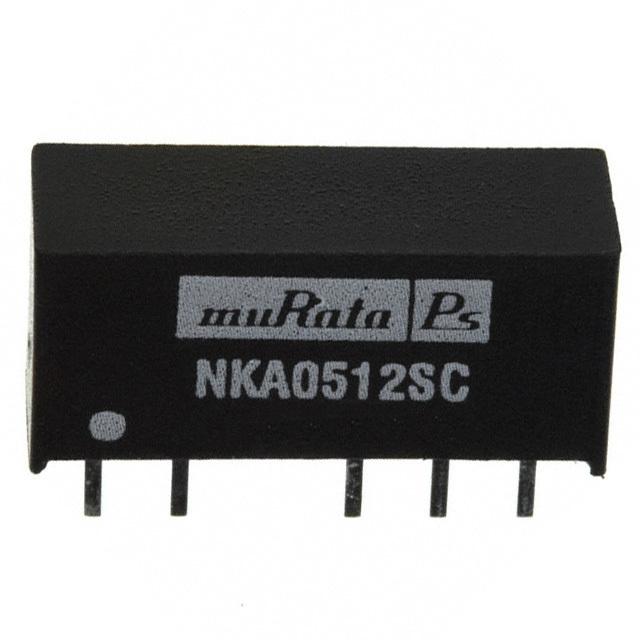

NKA0512SC Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

NKA0512SC

Part No NKA0512SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 12VOUT SIP DL
Datasheet
NKA0512SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Murata Power Solutions Inc.
Series NKA
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 6-SIP Module (5 Leads)
Size / Dimension 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 78%
Power (Watts) - Max 1W
Win Source Part Number 209252-NKA0512SC
Popularity Medium
Supply and Demand Status Limited
Quantity per package 30
Ultra Librarian 3D Model Ultra Librarian NKA0512SC CAD Model

Description

The Murata Power Solutions Inc. NKA0512SC is a DC-DC converter designed for power supplies - board mount applications.

  • Manufacturer: Murata Power Solutions Inc.
  • Series: NKA series
  • Package: 6-SIP module (5 leads)
  • Voltage Isolation: 3kV (3000V)
  • Number of Outputs: 2
  • Maximum Output Current: 42mA each
  • Input Voltage: 4.5V to 5.5V
  • Output Voltage: 12V and -12V
  • Power Rating: 1W
  • Efficiency: 78%
  • Application: ITE (Commercial)
  • Mounting Type: Through Hole
  • Size: 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
  • Supply and Demand Status: Limited
  • Package Quantity: 30
