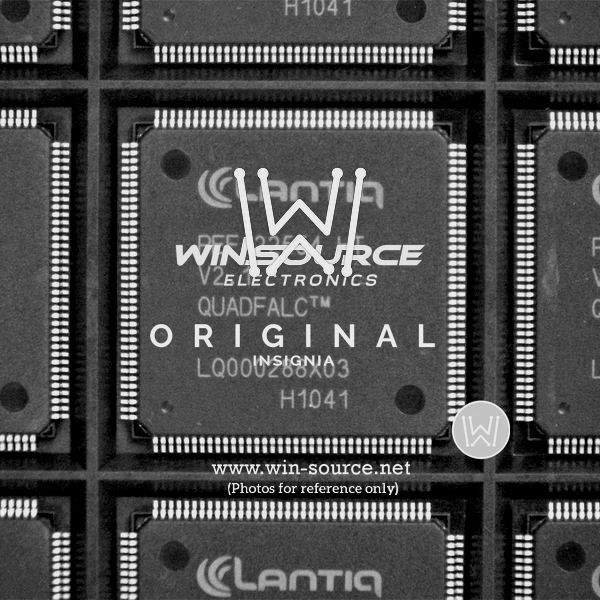

PEF22554HTV2.1 Infineon Technologies PEF22554HTV2.1 real image4631
Same model may have multiple batches, images only for reference.
PEF22554HTV2.1 Infineon Technologies PEF22554HTV2.1 real image4631
PEF22554HTV2.1 Infineon Technologies PEF22554HTV2.1 real image4631
Same model may have multiple batches, images only for reference.

PEF22554HTV2.1

Part No PEF22554HTV2.1
Manufacturer Infineon Technologies
Catalog Interface - Telecom
Description IC LIU E1/T1/J1 144TQFP / Framer T1/E1/J1 3.3V 144-Pin TQFP
Datasheet
PEF22554HTV2.1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Purpose Framer, Line Interface Unit (LIU)
Number of Circuits 4
Supply Voltage - Operating 1.8V, 3.3V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package PG-TQFP-144
Includes CAS Controller, Clock Generation, CRC-4 Monitor, LOS / AIS / RAI Alarm Detection and Generation, PRBS Generation and Monitoring
Win Source Part Number 061402-PEF22554HTV2.1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PEF22554
Introduction Date July 02, 2003
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PEF22554HTV2.1 CAD Model

Description

The Infineon Technologies 061402-PEF22554HTV2.1 is an Integrated Circuit with 4 circuits and is mounted on a PG-TQFP-144 package. It includes a CAS Controller, Clock Generation, CRC-4 Monitor, LOS / AIS / RAI Alarm Detection and Generation, and PRBS Generation and Monitoring.

  • Suitable for: Framer, Line Interface Unit (LIU)
  • Supply Voltage - Operating: 1.8V, 3.3V
  • Product Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
