The ISC0703NLSATMA1 is a N-Channel MOSFET transistor from the OptiMOS 5 series. It has a drain to source voltage of 60 V and a continuous drain current of 13A (Ta), 57A (Tc) @ 25°C.

• Rds On (Max) @ Id, Vgs: 6.9mOhm @ 32A, 10V
• Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 10 V
• Mounting Type: SMD (SMT)

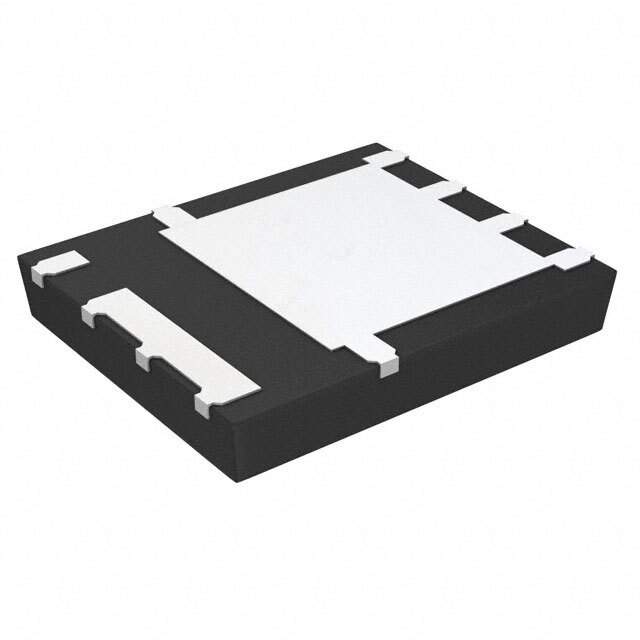

• Package/Case: 8-PowerTDFN
• Input Capacitance (Ciss) (Max) @ Vds: 1400 pF @ 30 V
• Gate Threshold Voltage (Vgs(th)): 2.3V @ 15μA
• Suitable Applications: Power supplies, DC-DC converters, motor control, and battery management systems
